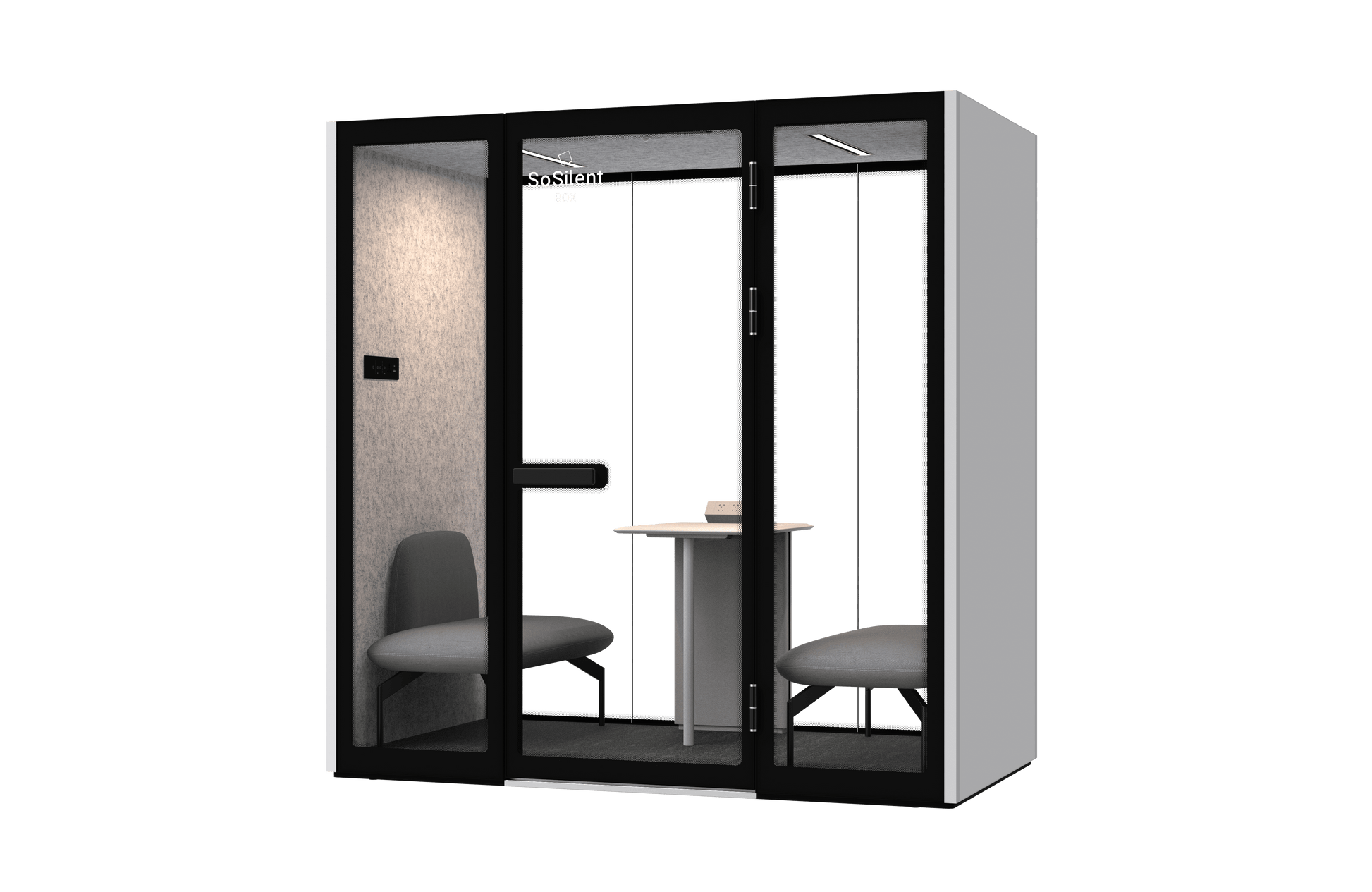

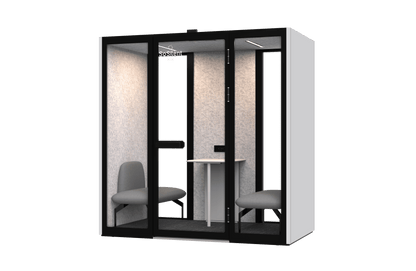

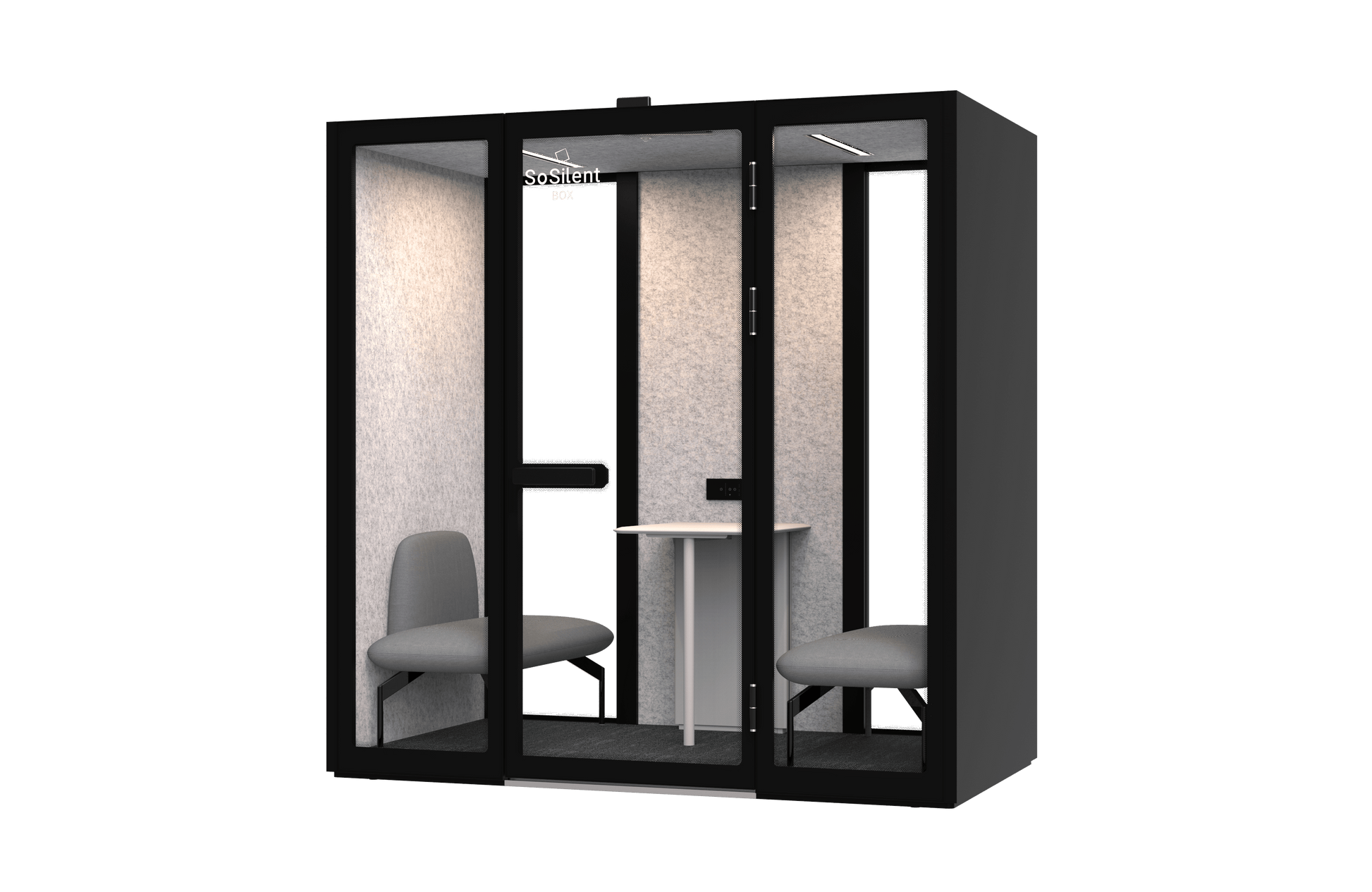

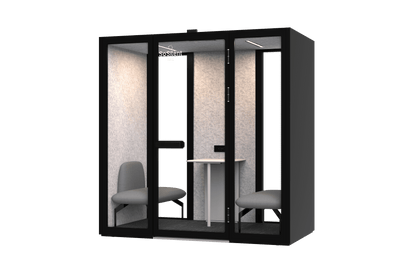

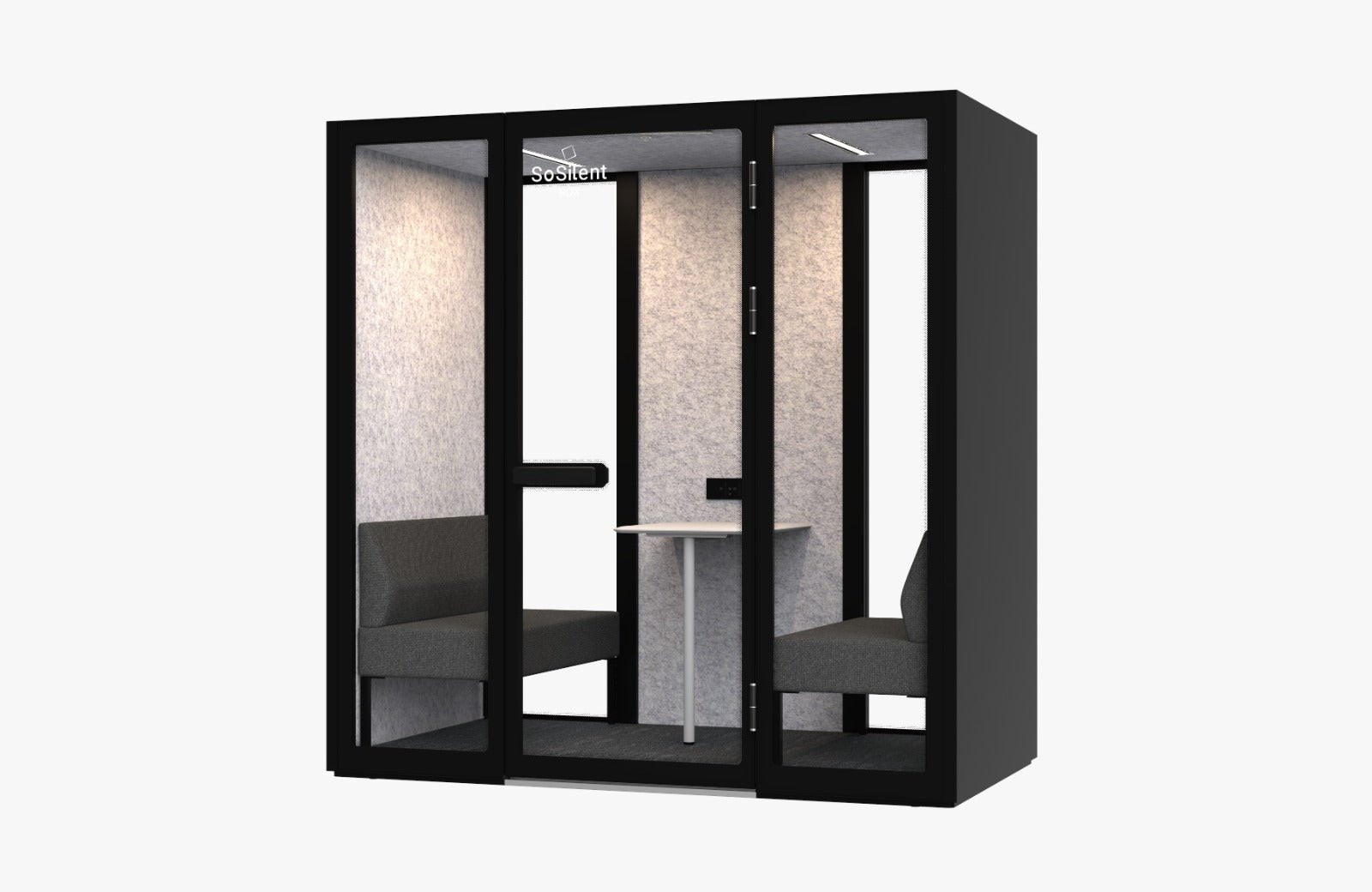

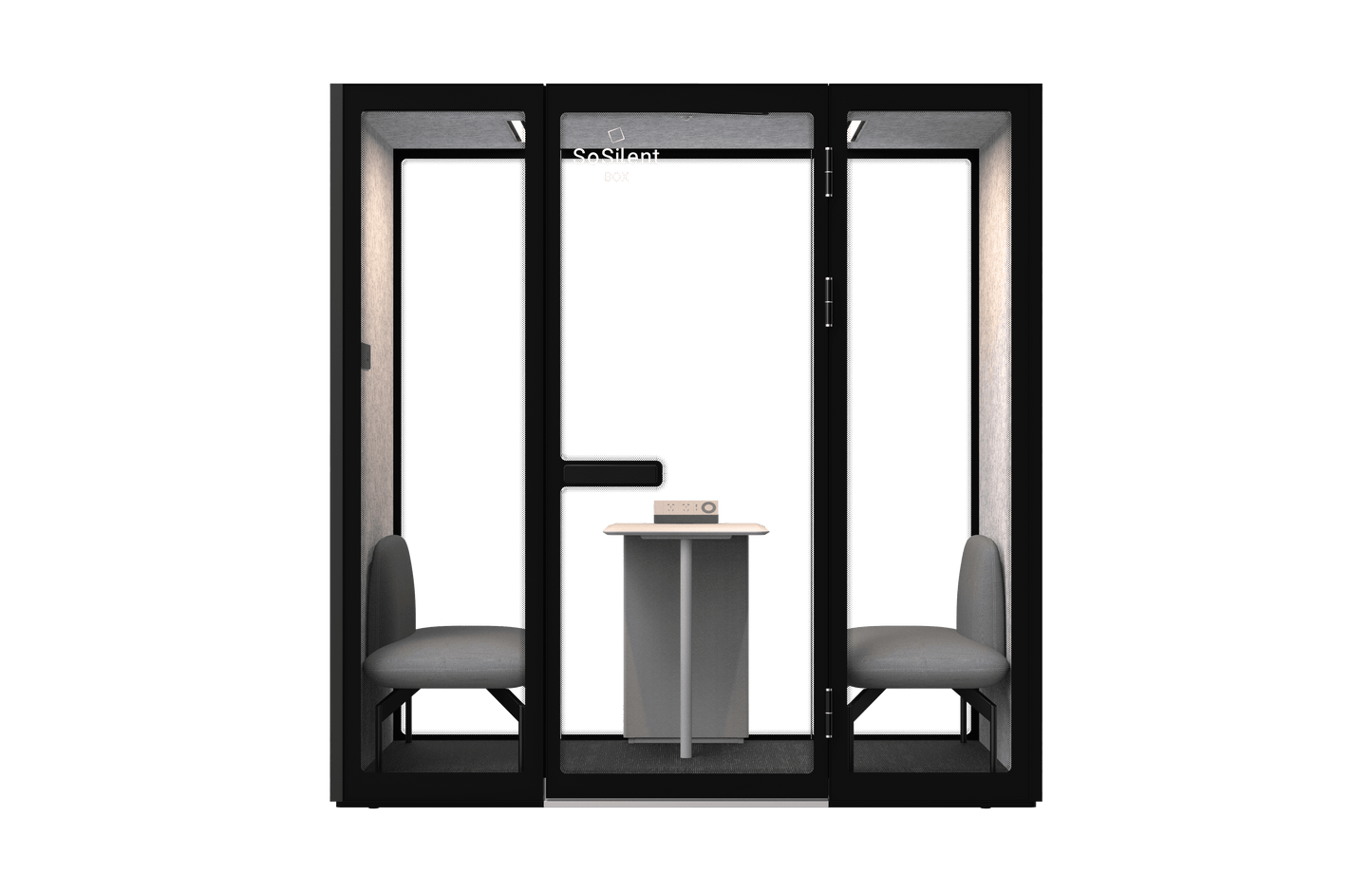

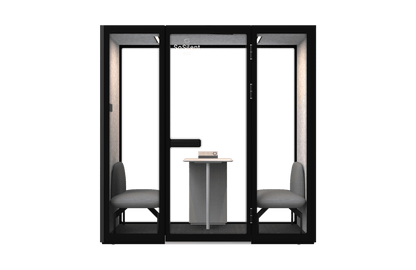

Urban M3³ – workplace box for 2 people

1. Improved acoustics & sound insulation

• optimized multi-layer wall structure
• further improved sound absorption in the interior
• quiet, concentrated working and conversation atmosphere
• ideal for meetings, workshops & video conferences in open space

Result: Less noise, high speech intelligibility – even with several people

2. Significantly quieter and more efficient ventilation

• newly developed ventilation system
• even airflow throughout the room
• complete air exchange approximately every 2 minutes
• Extremely quiet operation – even during longer meetings

Result: pleasant room climate without noticeable fan noise

3. Higher quality materials & sturdy construction

• Aluminum frame ≥ 1.5mm
• additional powder-coated steel panels (1.0mm)
• precise processing
• high stability even with larger room volumes

Result: Durable, high-quality, professional – designed for continuous use in the office

4. New design & configuration options

• new exterior colors
• new interior colors for acoustic panels
• selectable Frame shapes (square, round, flattened)
• modular configuration logic

Result: Can be optimally integrated into modern office and room concepts

5. Smart Plus Glass – thought ahead

• continue 32 ± 3 dB sound insulation
• improved acoustic effect in the room
• optional with switchable smart glass
• Privacy at your fingertips
• ideal for confidential team discussions

Result: maximum flexibility with high acoustic performance

6. Barrier-free meeting boxes – Urban-Line 3rd generation

• barrier-free designs within the for the first time Urban Line – 3rd generation
• optimized for Level access and comfortable use with a wheelchair
• Interpretation according to the central requirements of DIN 18040
• available as
  • M1³ barrier-free
  • L1³ barrier-free
  • L2³ barrier-free
• developed for inclusive, sustainable working environments

Result: Barrier-free use with the full acoustics, technology and design quality of the Urban Line

*Note on DIN 18040:
The barrier-free models of the Urban Line – 3rd generation are based on the specifications of DIN 18040.
M1³ barrier-free and L1³ barrier-free due to their compact design Door lights and turning surface from the full DIN dimensions, but in practice they can be used for wheelchairs.
The L2³ barrier-free Fully meets the requirements of DIN 18040, including door passage and free turning area.

Dimensions

• Outside: 2150 × 1350 × 2185mm
• Inside: 2003 × 1202 × 2005mm

Weight

• Closed back wall (acoustic panel): 510kg
• Split back wall (acoustic panel + glass): 482kg
• 2x glass wall (front & back): 450kg

Sound insulation

• Plus: 32 ± 3dB
• SmartPlus: 32 ± 3 dB (with switchable smart glass)

Glass

• 6 mm ESG safety glass

Lighting

• integrated LED ceiling light
• 5000K (neutral white)
• Presence sensor

Ventilation

• fully automatic ventilation system
• complete air exchange approximately every 2 minutes

Power & connections

• 110-220V/50Hz
• integrated USB system (12 V)

Guarantee

• 5 years on frame & construction
• 1 year on electrical & interior

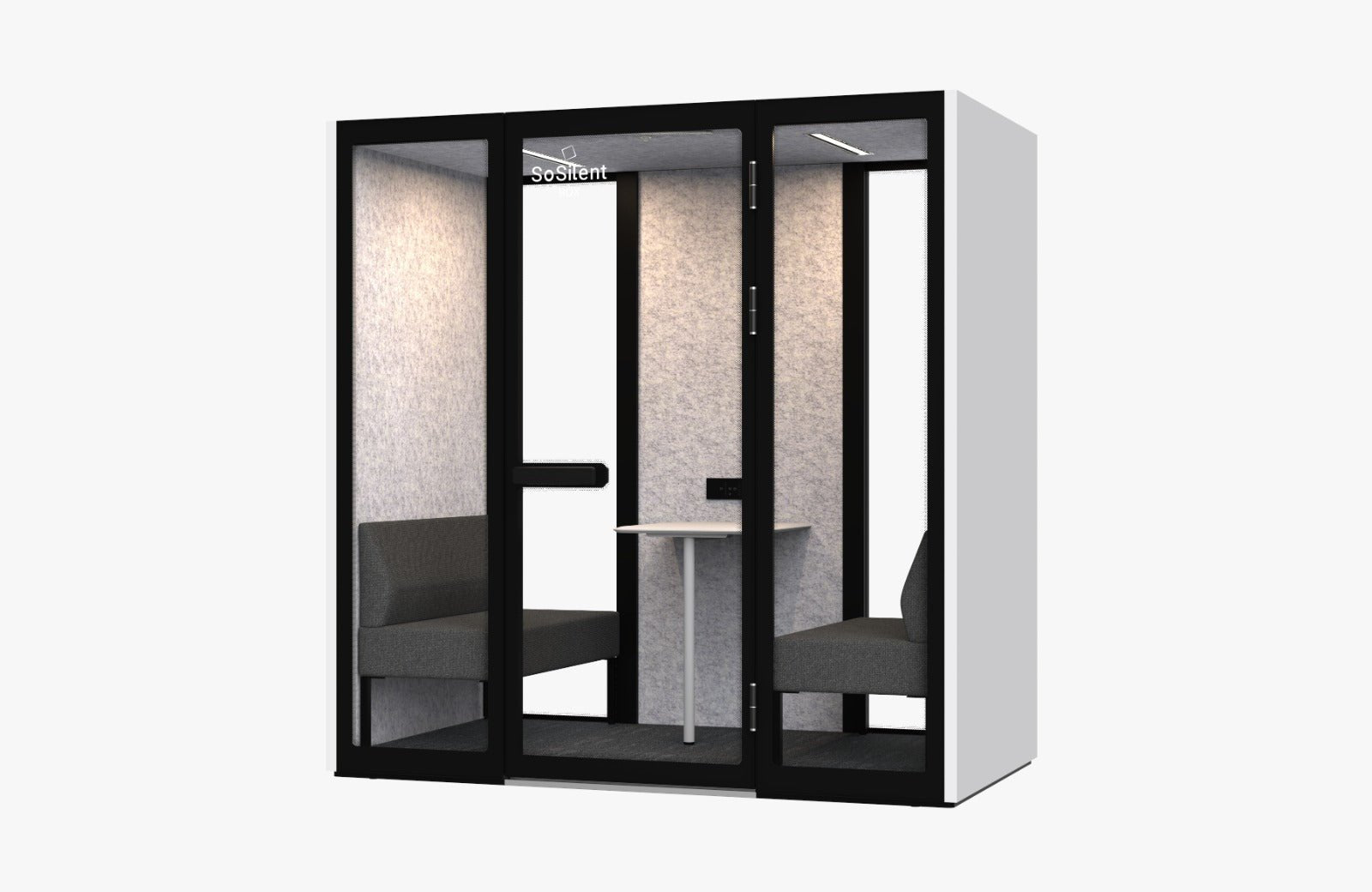

• Various table and seating configurations possible:
  • 2x classic sofa
  • 2x modern sofa
  • 1x normal table for closed or divided back wall
  • 1x table for glass back wall
• designed for 2 people
• ideal for meetings, workshops and longer video conferences

Note: The price shown does not include interior fittings. This can be supplemented individually.

Exterior colors

• White
• Black
• Petrol
• Lemon yellow
• Red

Interior colors – acoustic panels

• Silver gray (standard)
• Grey
• Red
• Orange
• Yellow
• Light brown

(Please specify the desired interior color when requesting a quote/ordering. This option cannot currently be selected as a variant in the shop. The standard is “silver gray”)

floor

• Carpet in Anthracite

Glass options

• Plus – 32 ± 3dB
• SmartPlus – 32 ± 3 dB with switchable smart glass

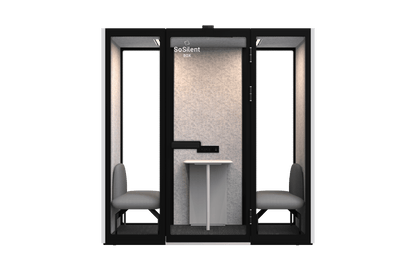

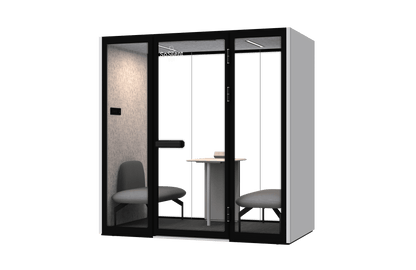

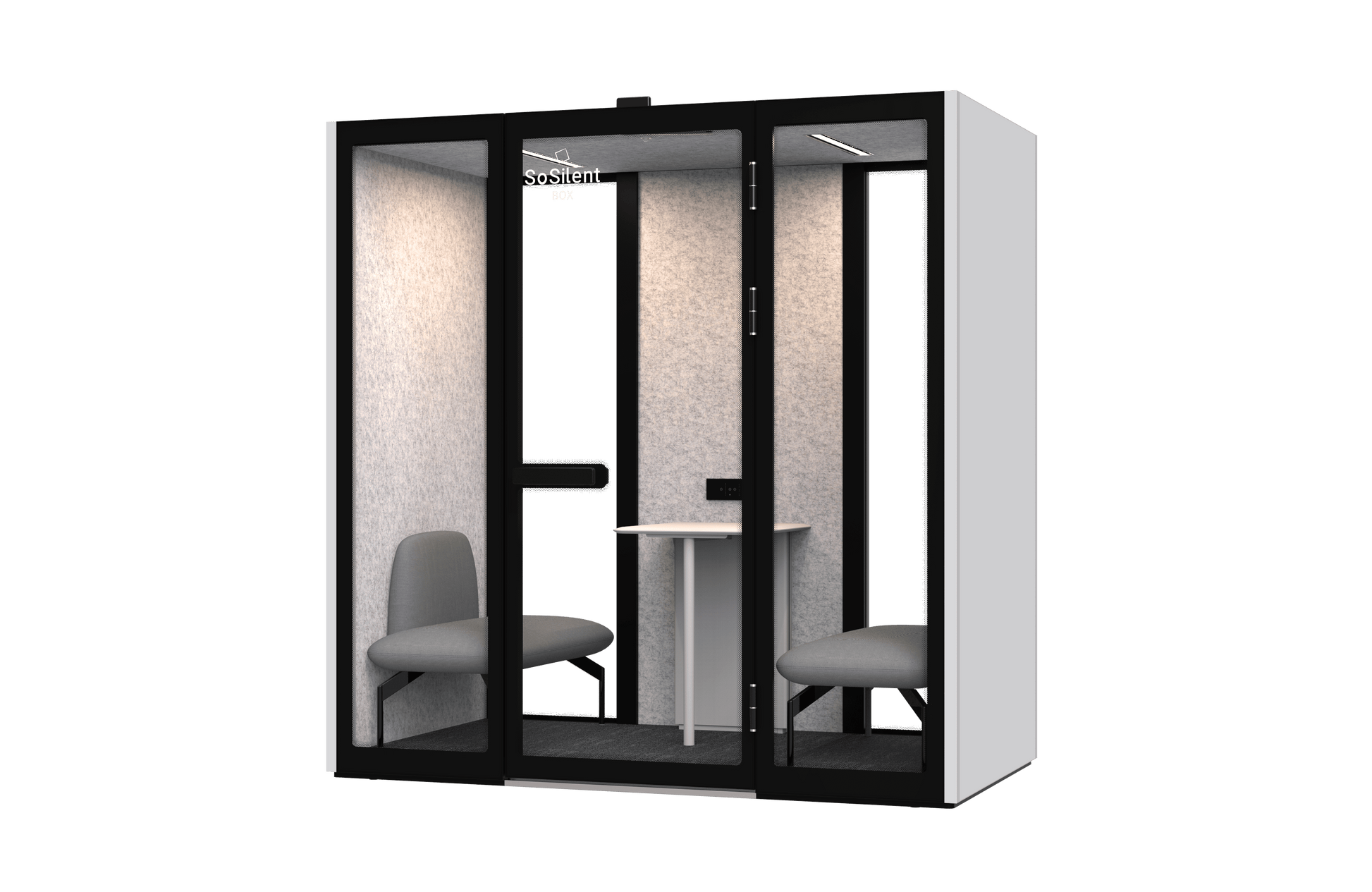

Wall configuration

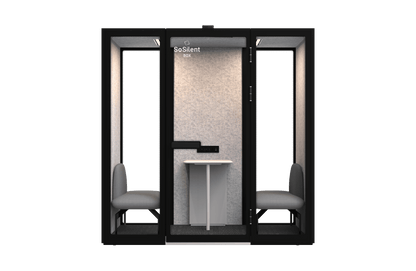

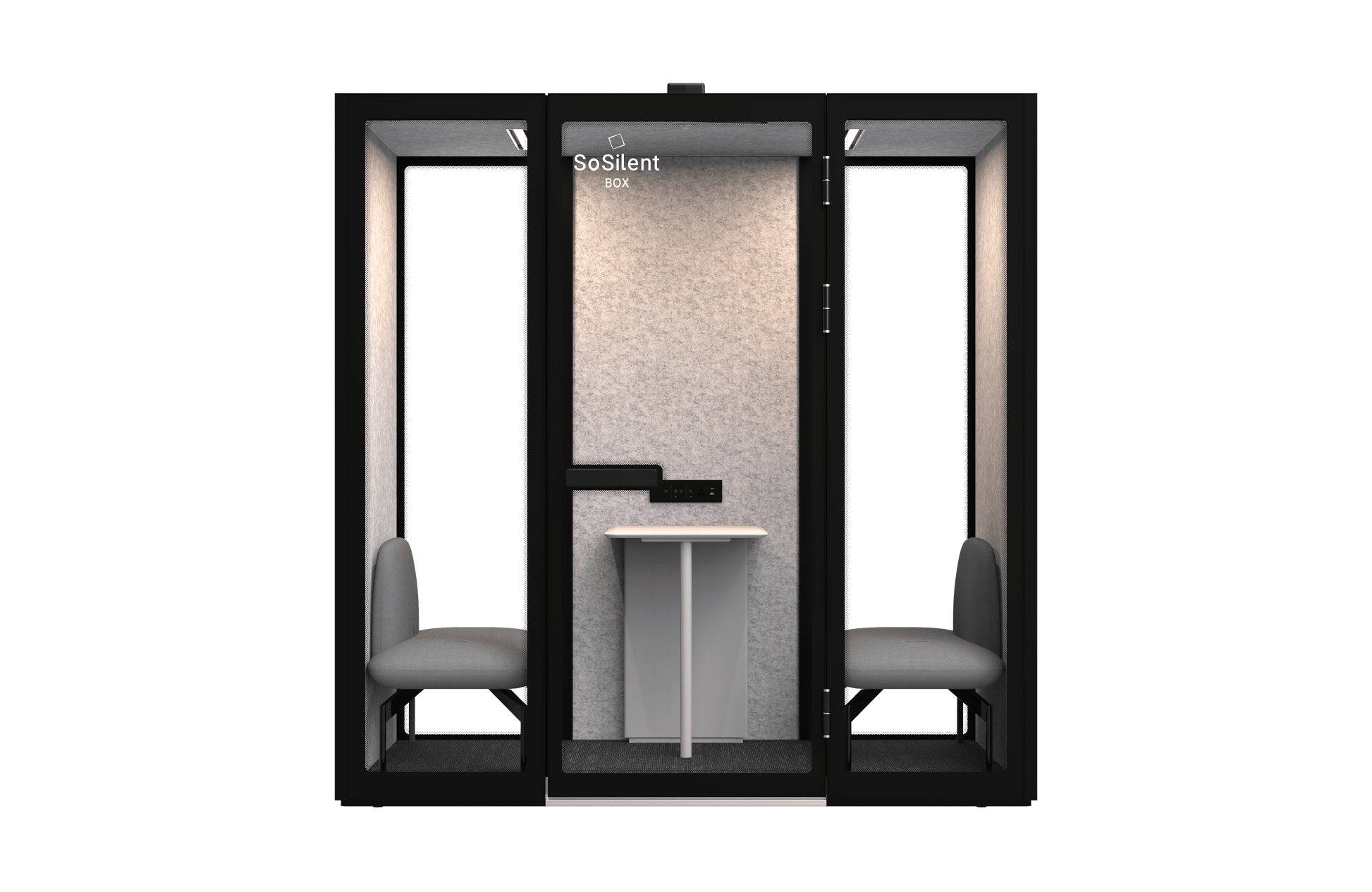

• Closed back wall
  Maximum sound insulation, quiet and shielded feeling of space.
• Split back wall
  Combination of acoustics and transparency, balanced feeling of space.

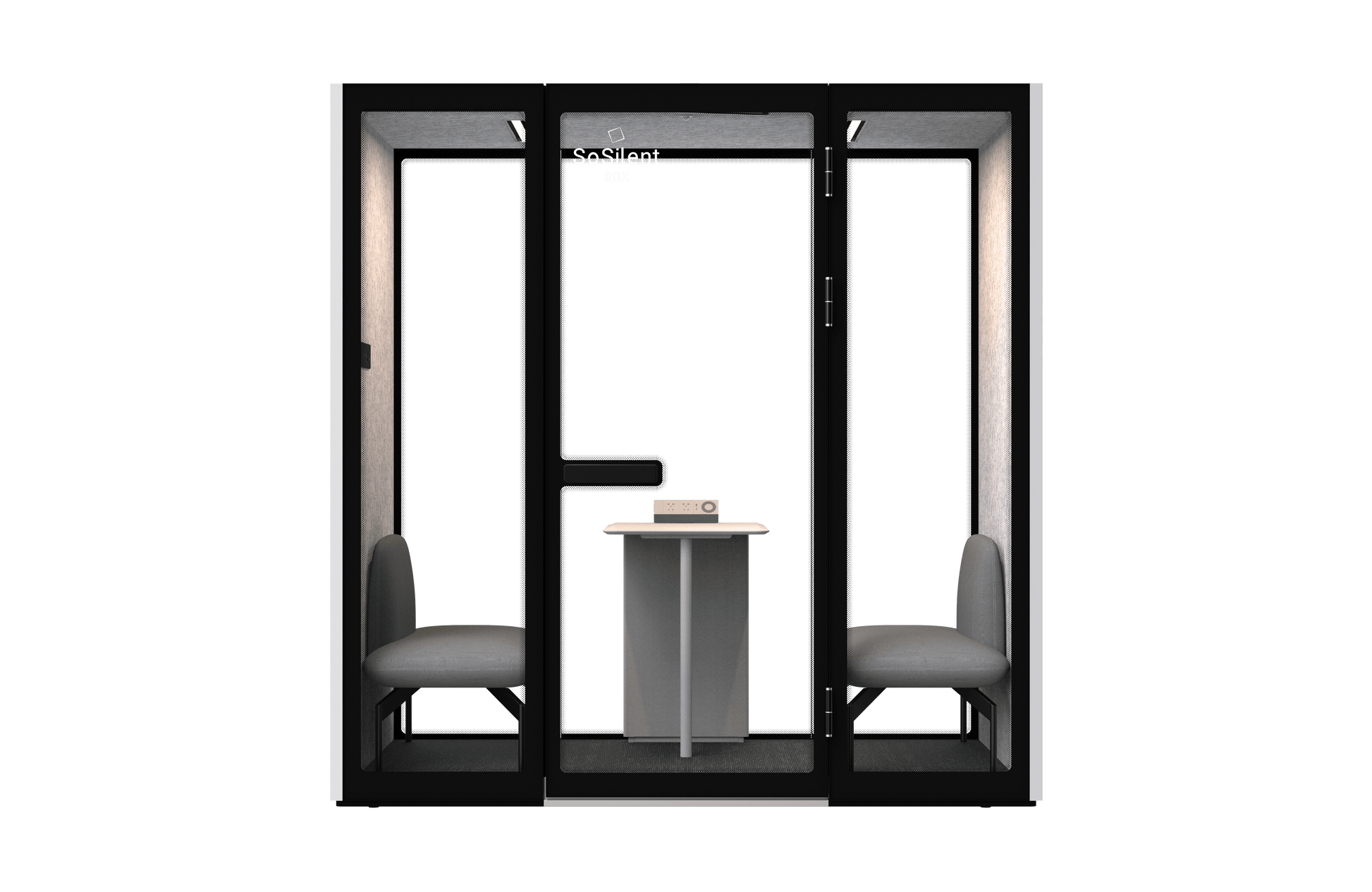

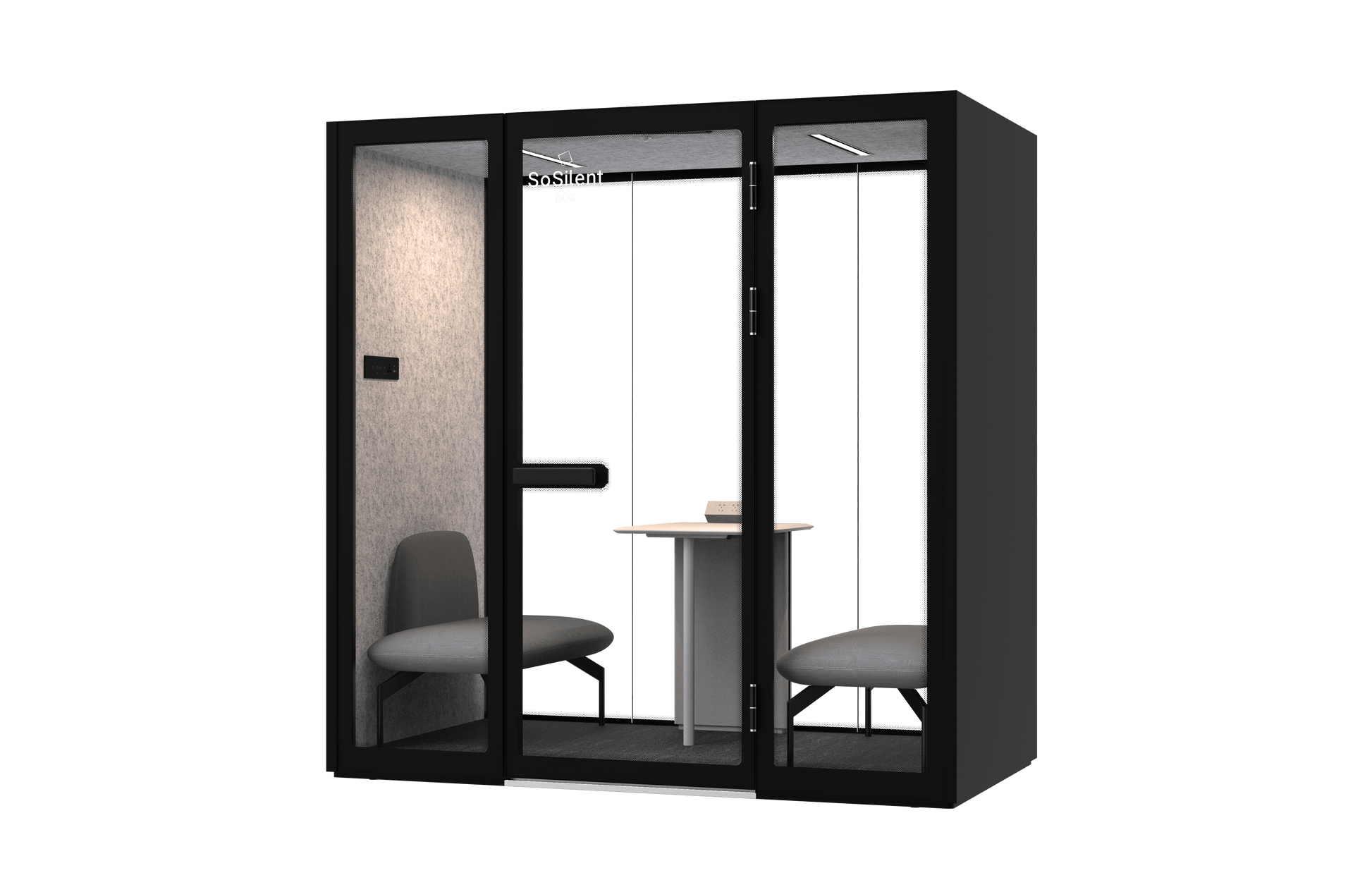

• 2× glass wall (front & back)
  Maximum transparency and brightness, open feeling of space, slightly lower sound insulation than with a closed back wall.

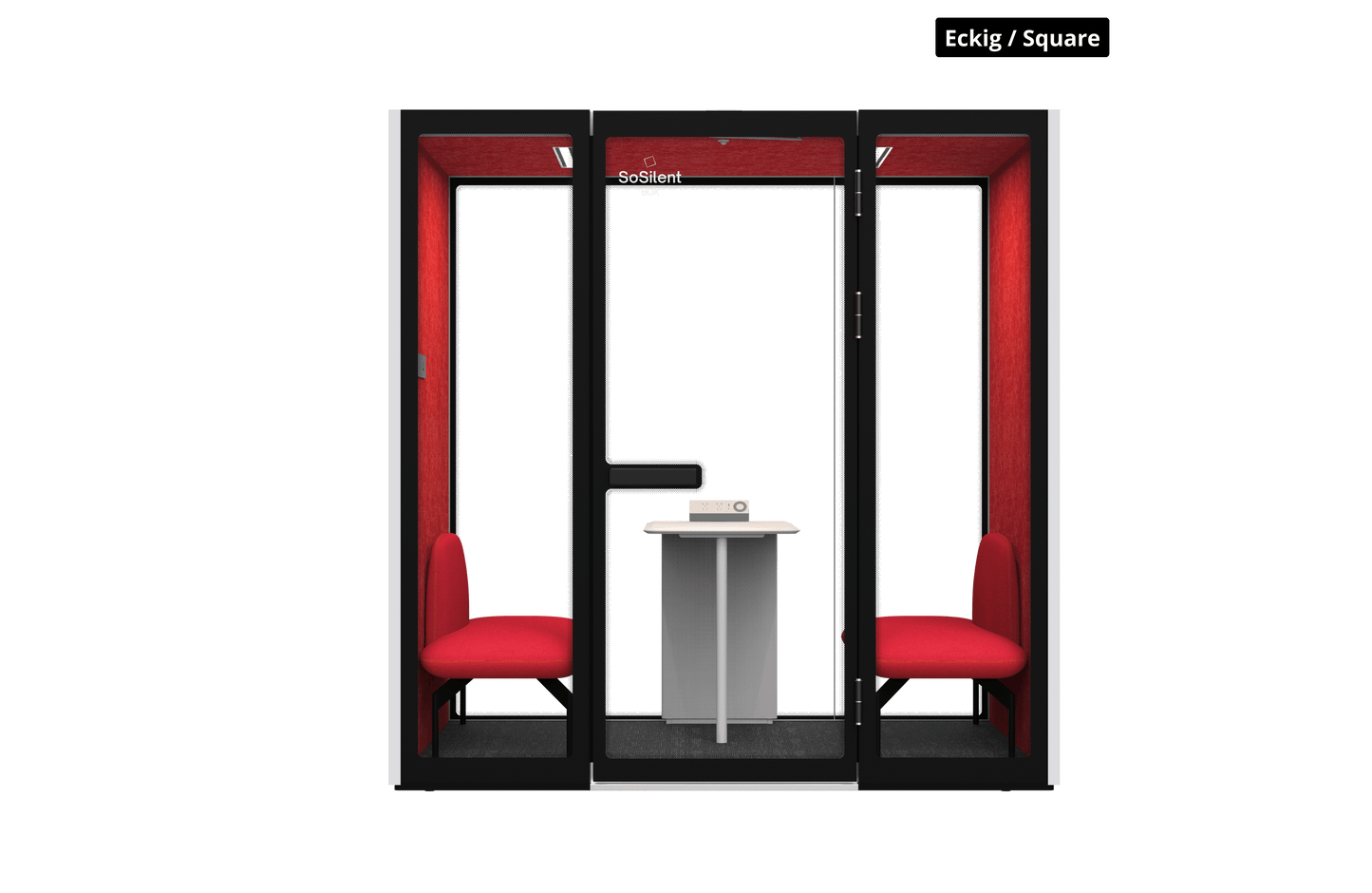

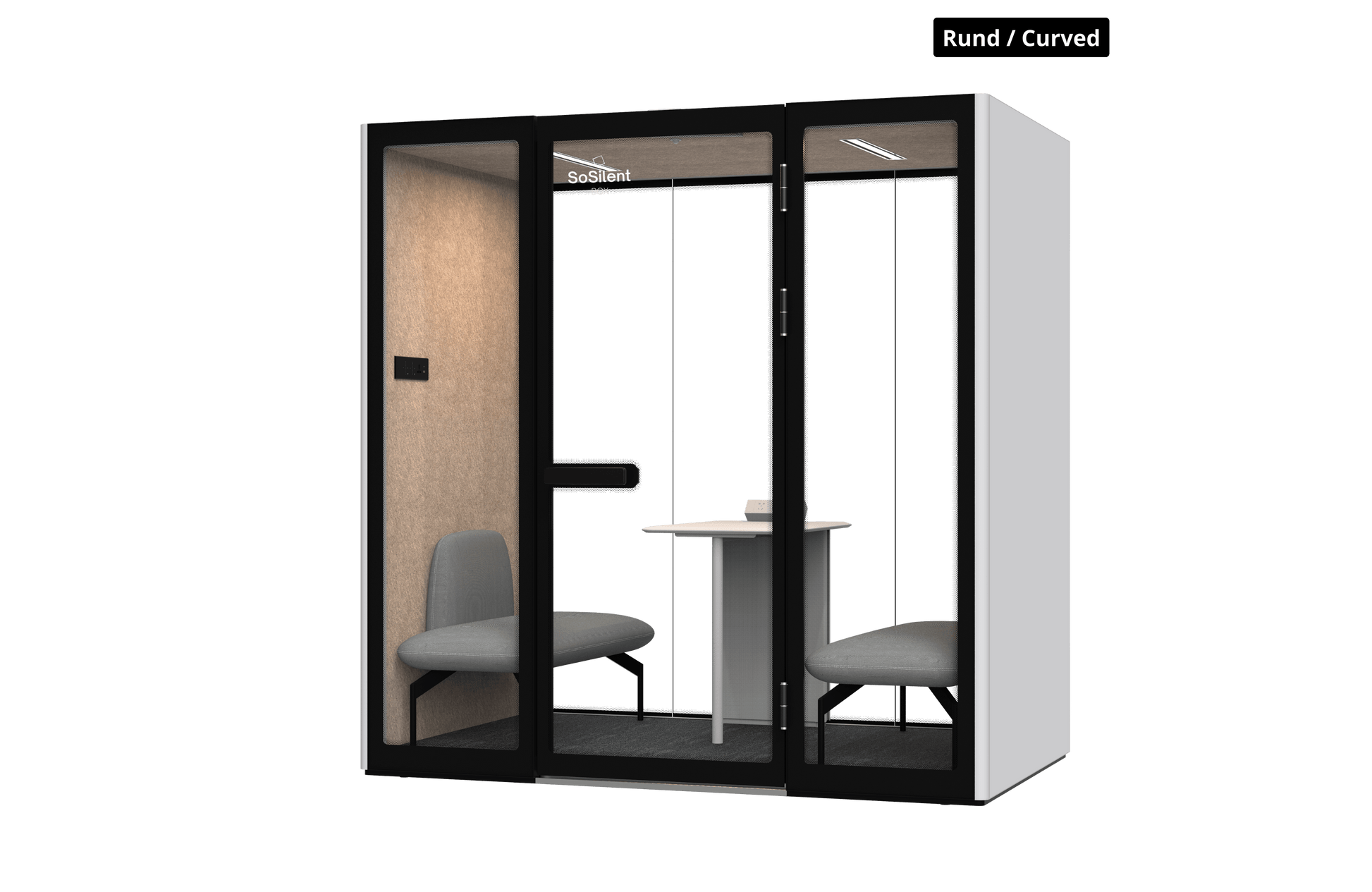

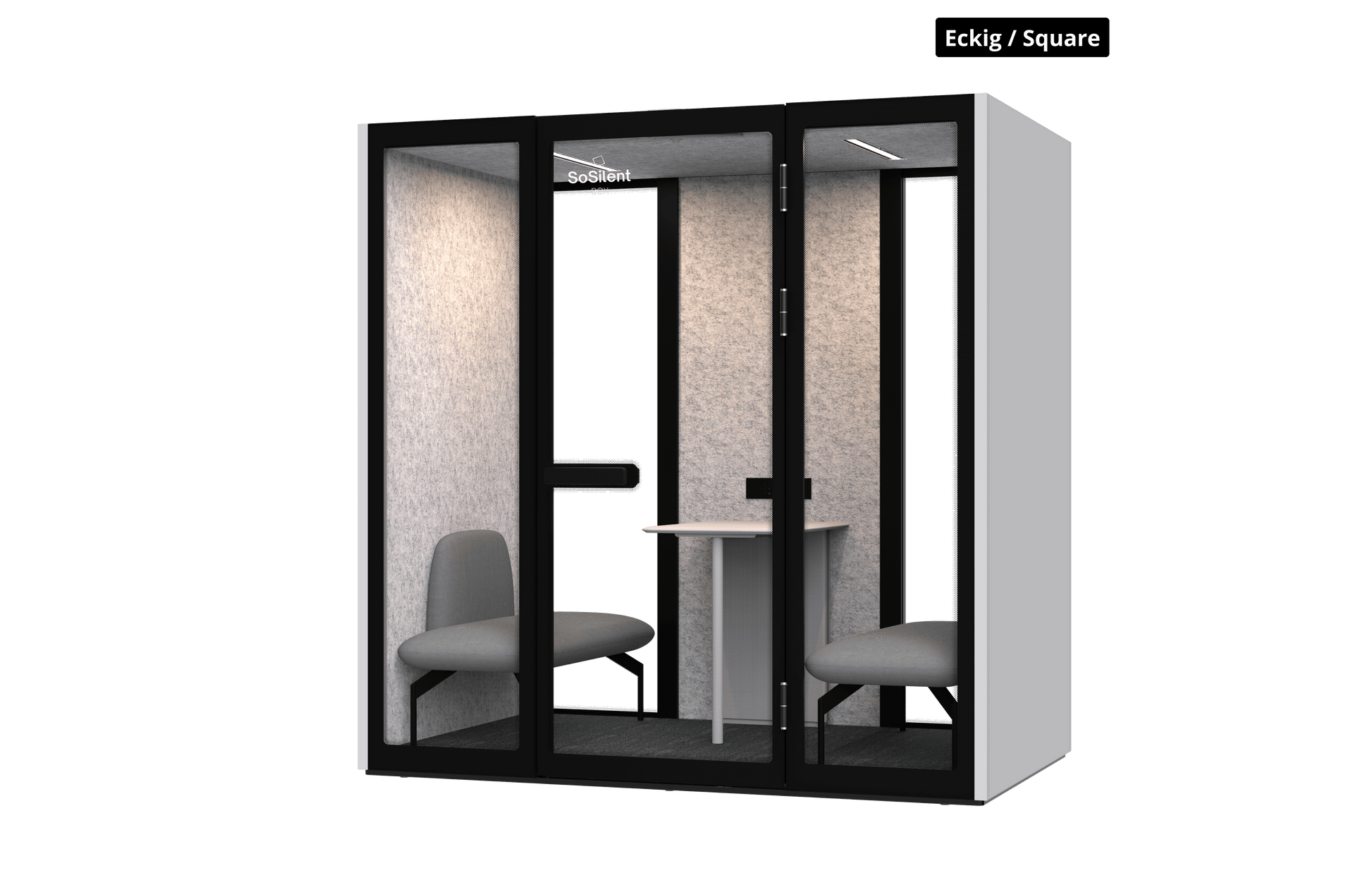

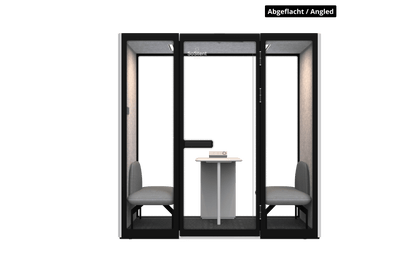

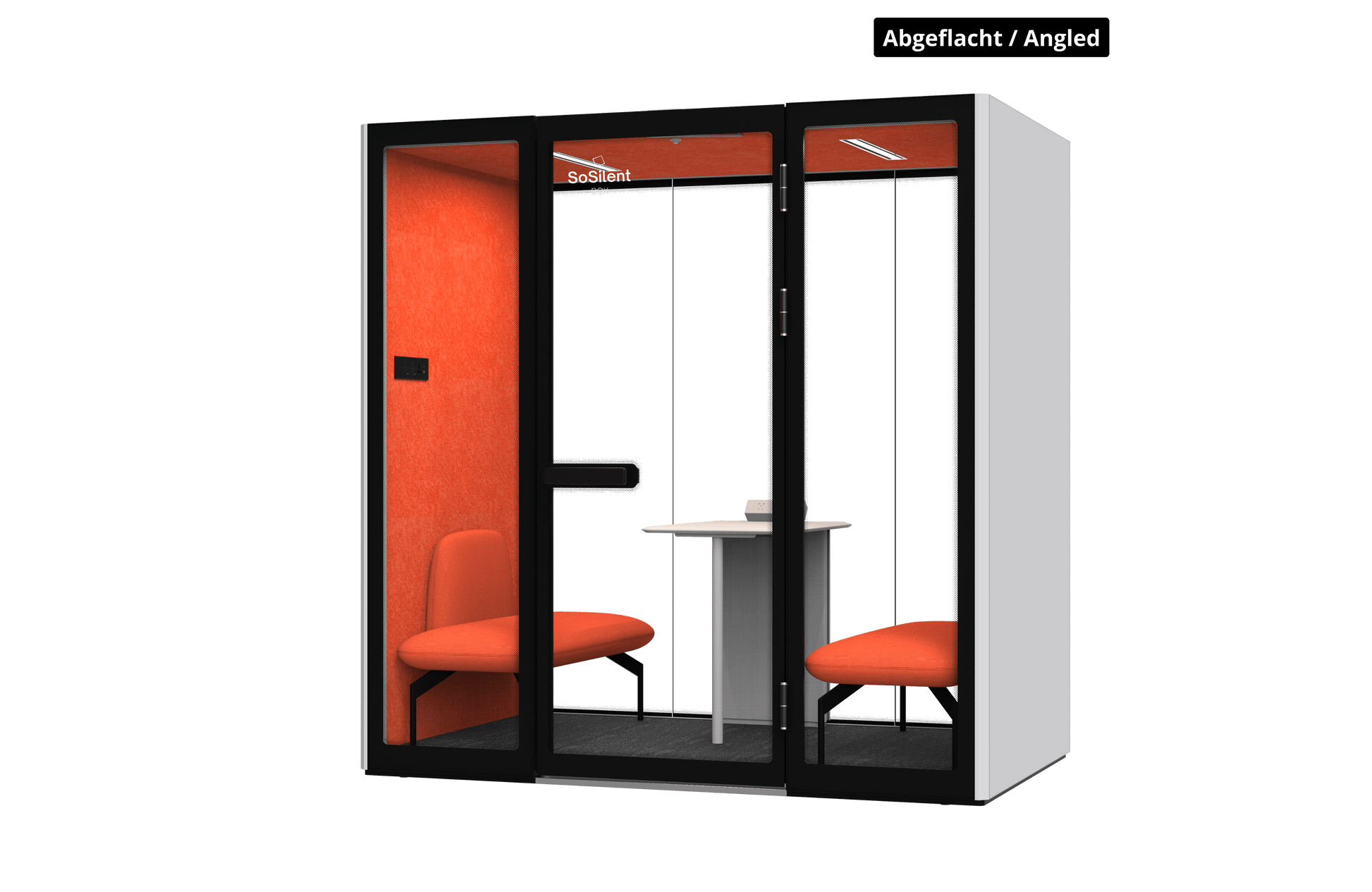

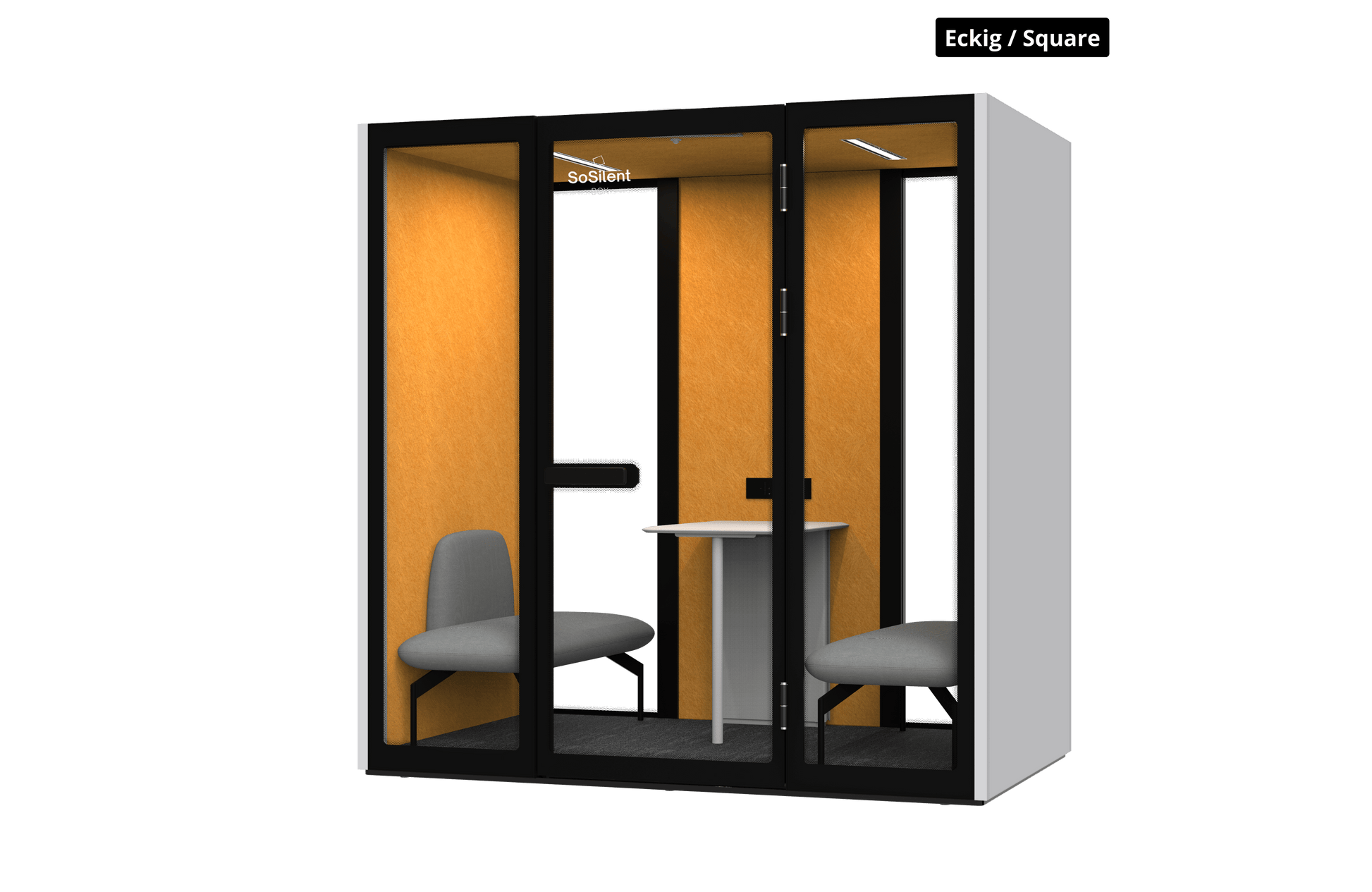

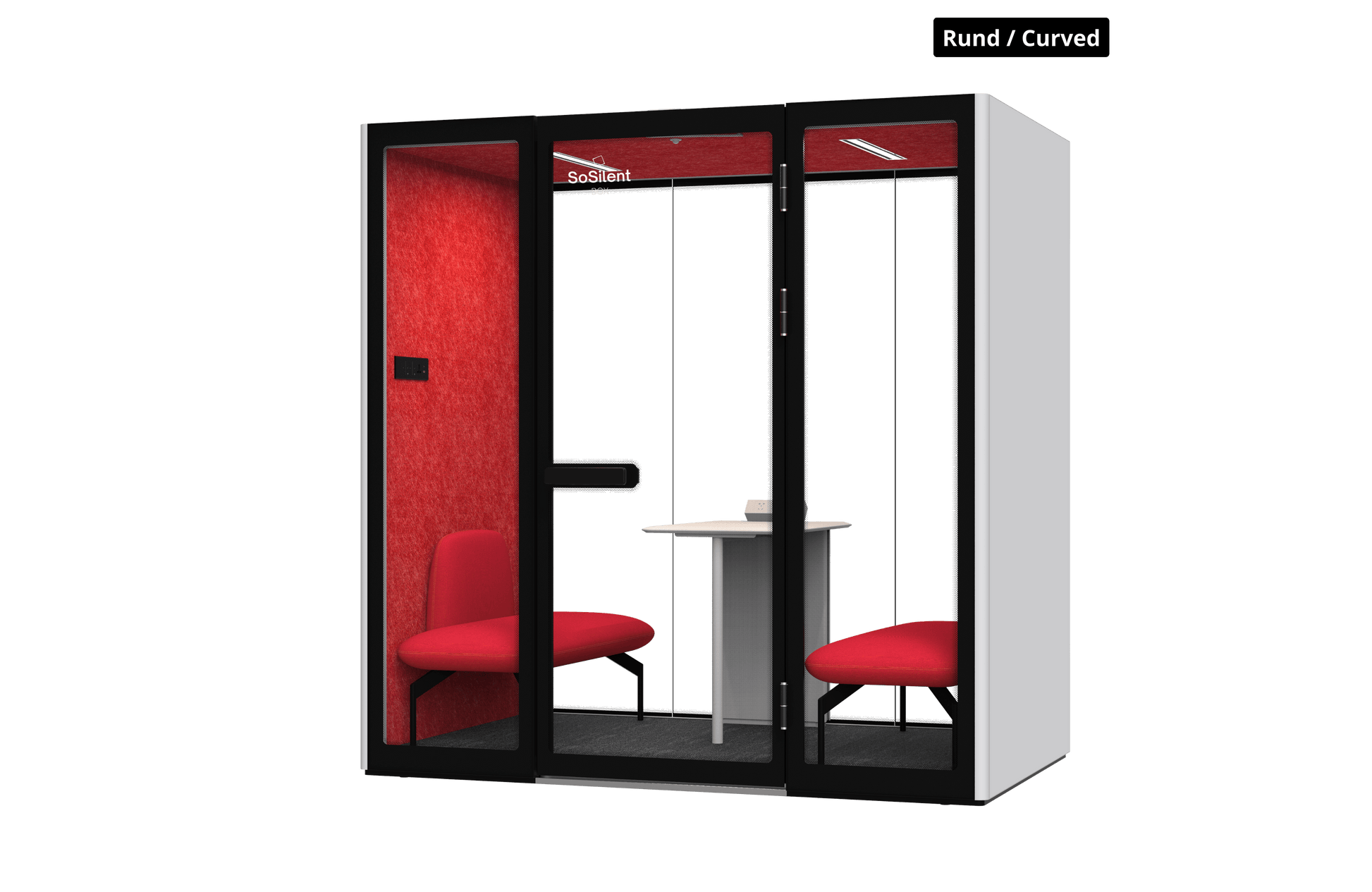

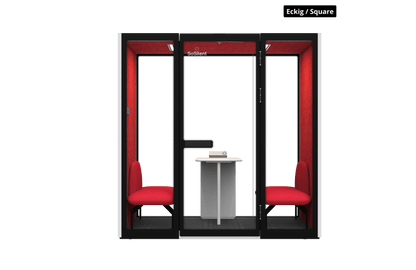

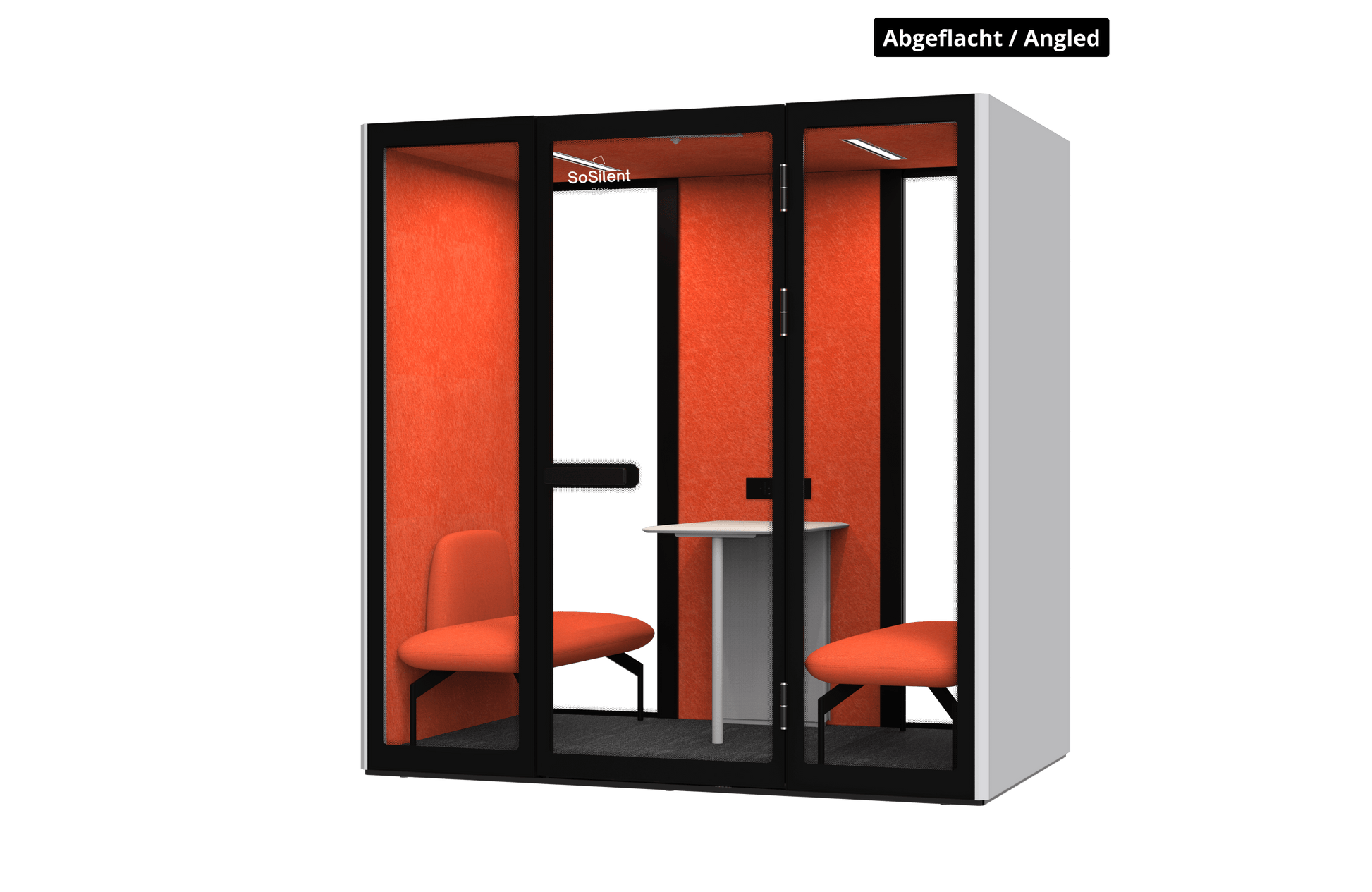

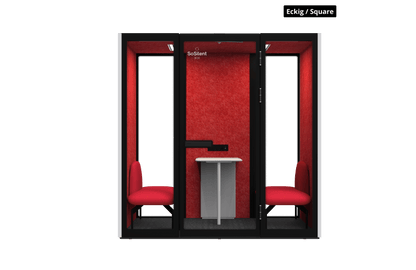

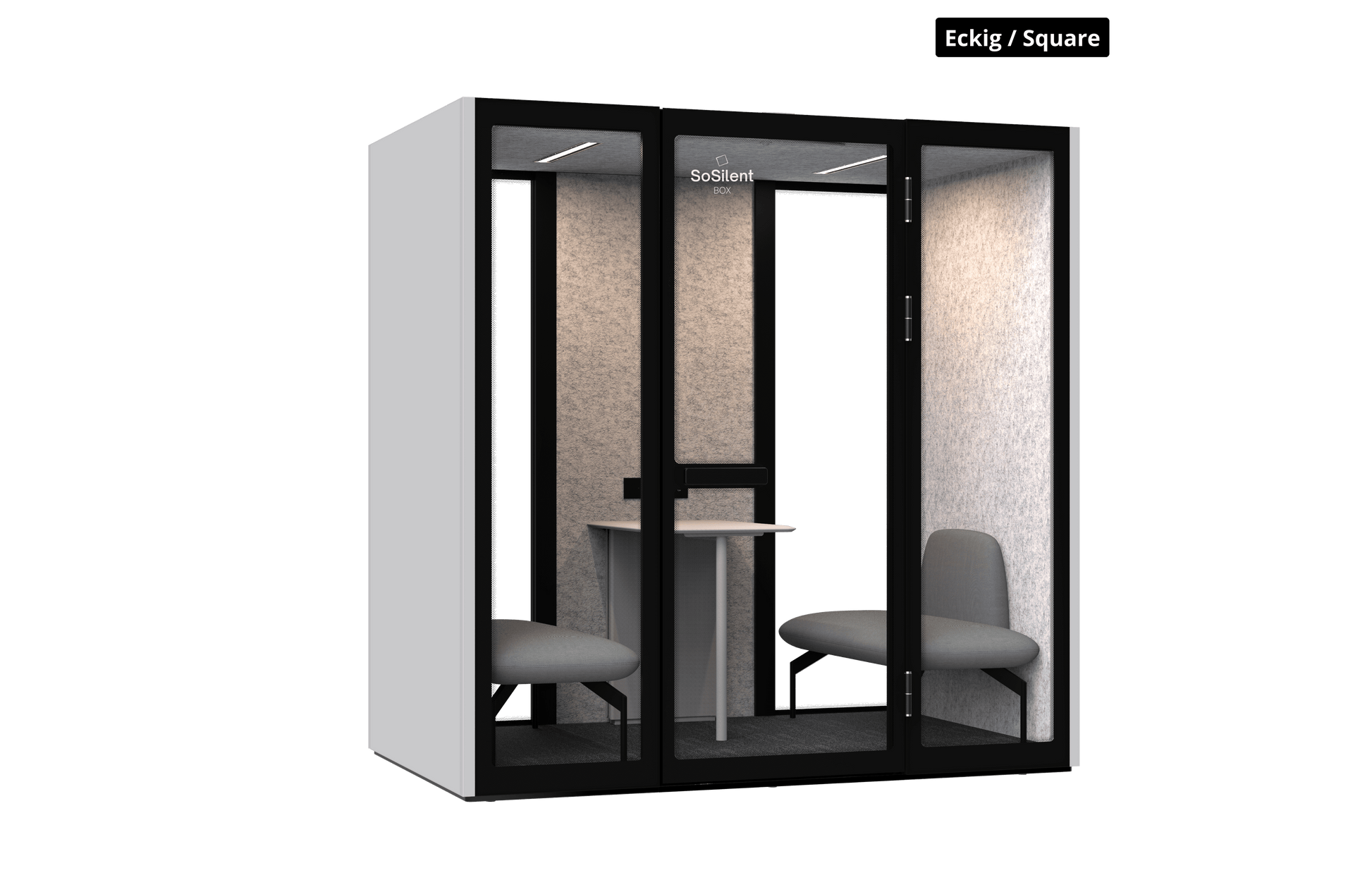

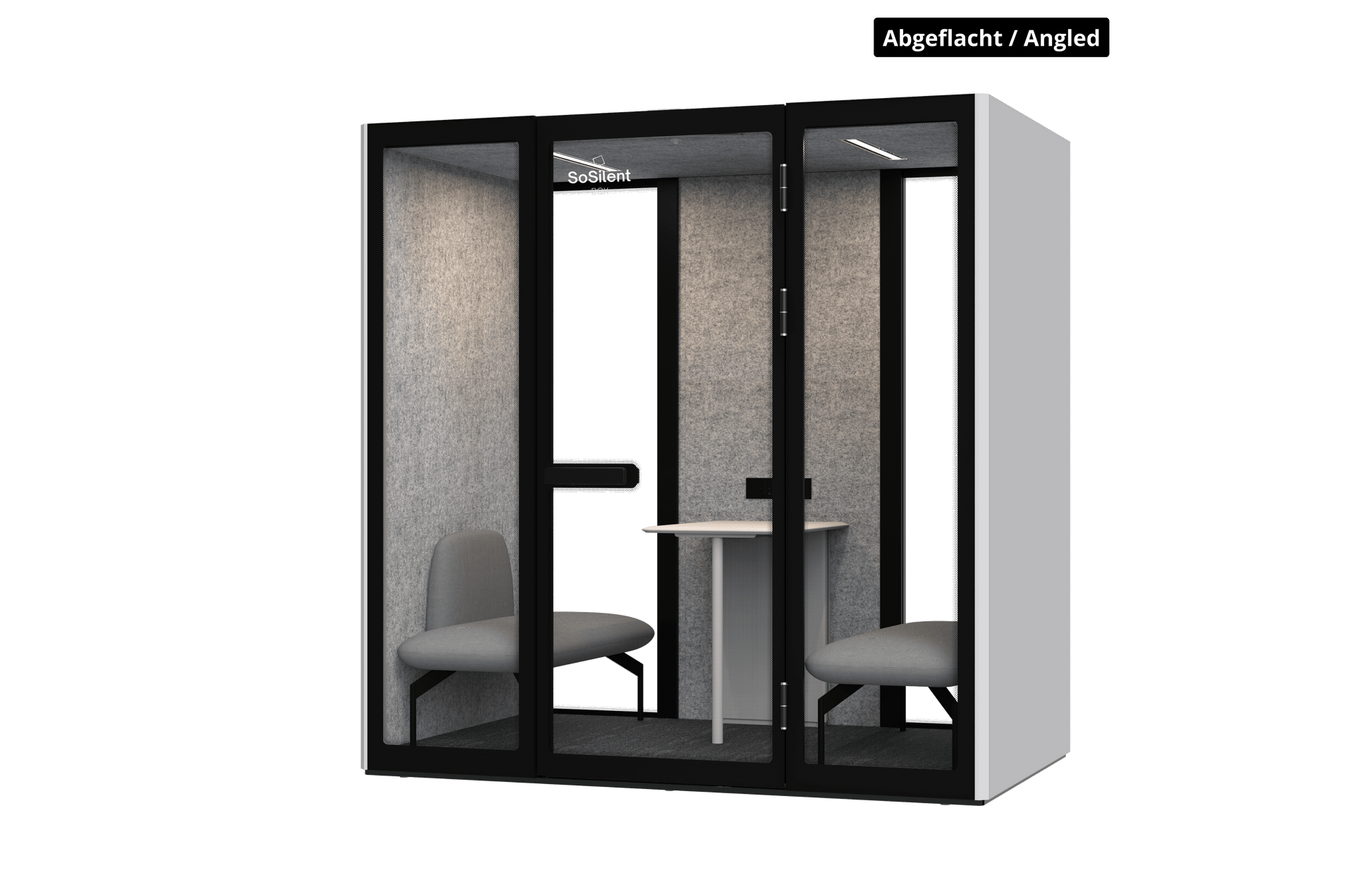

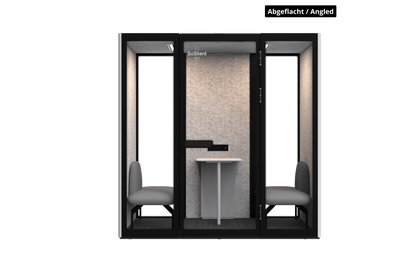

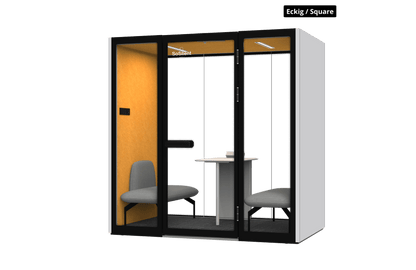

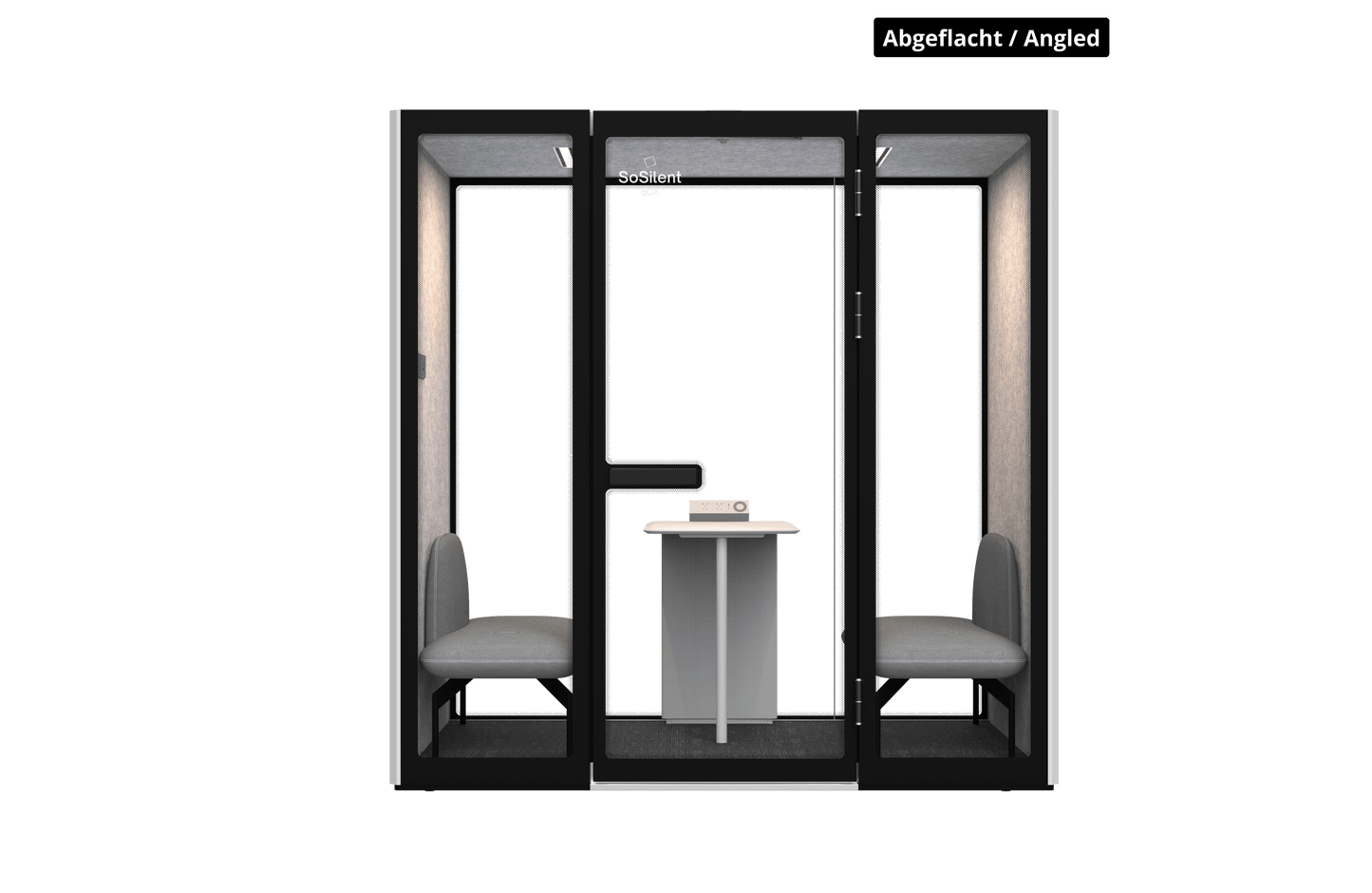

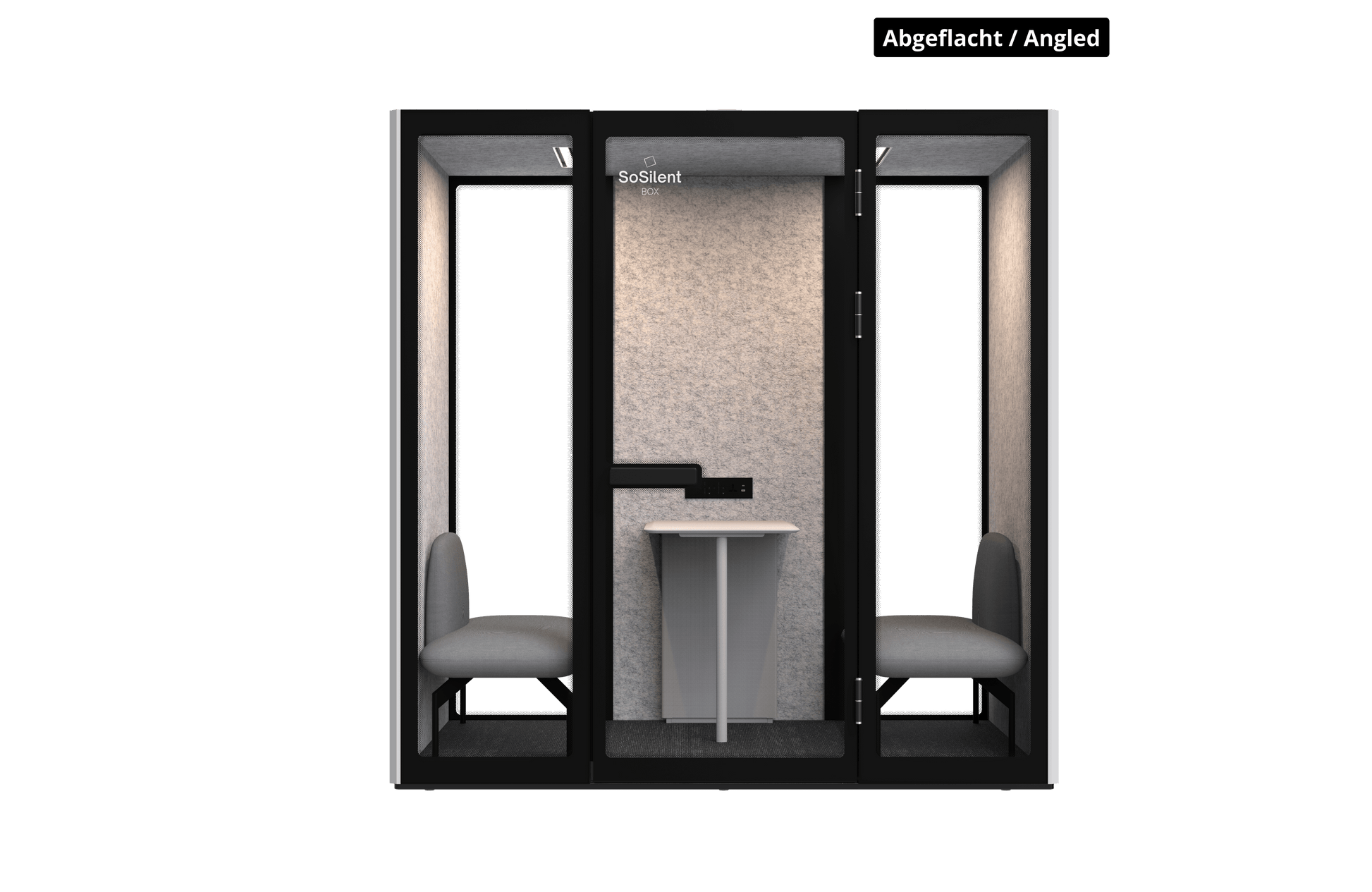

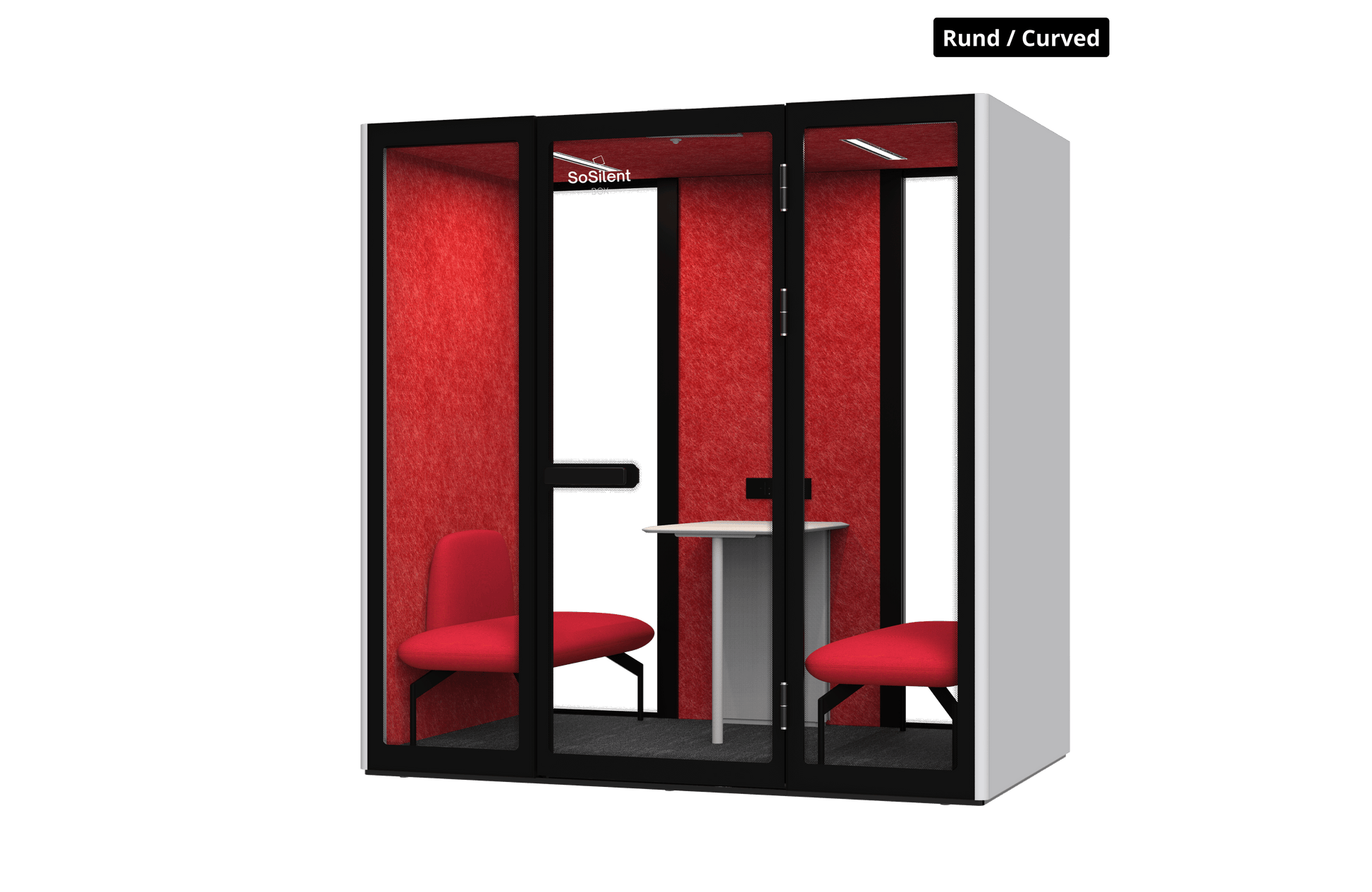

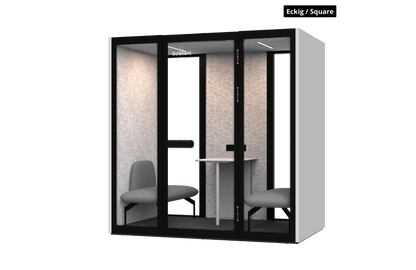

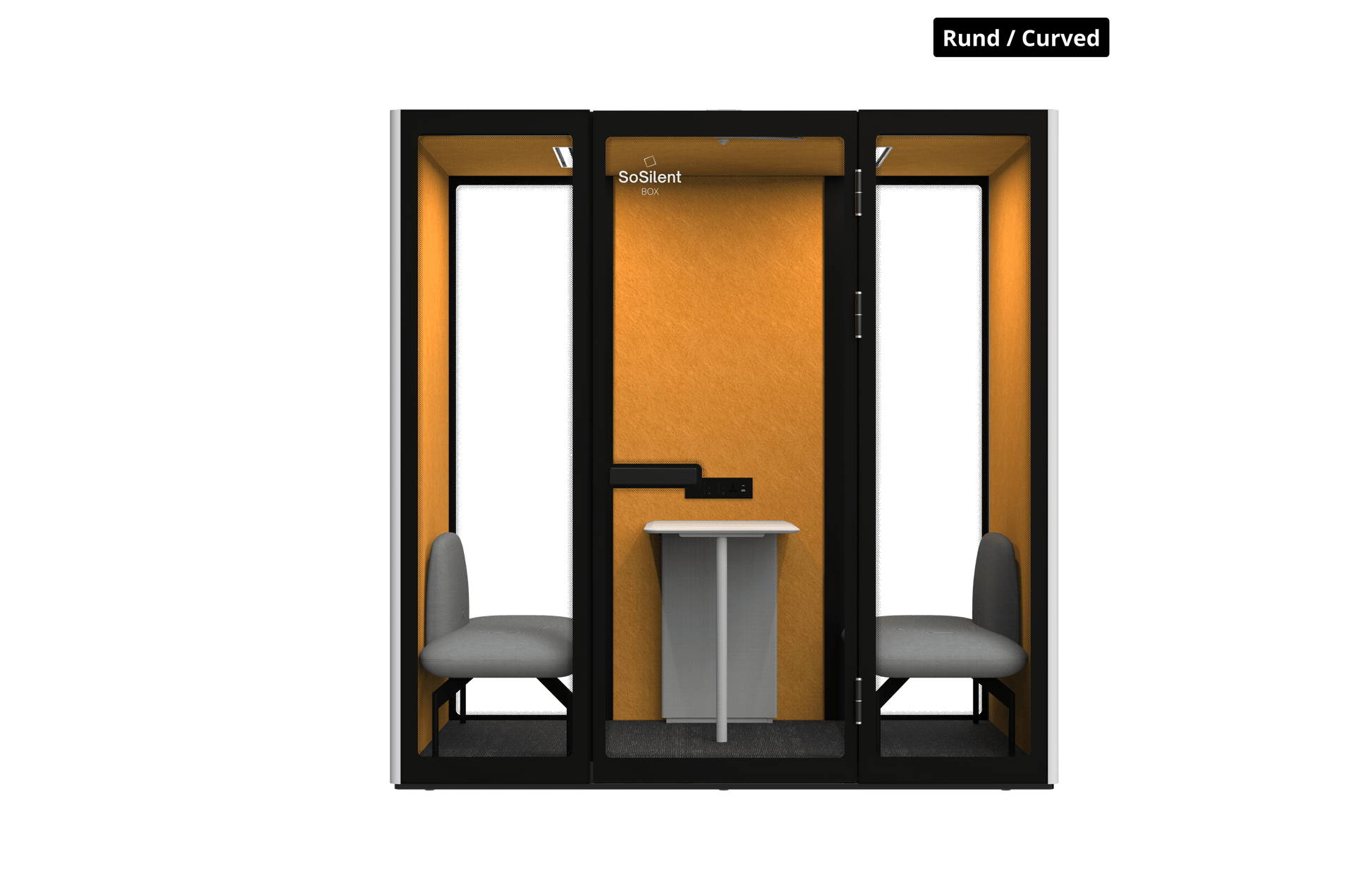

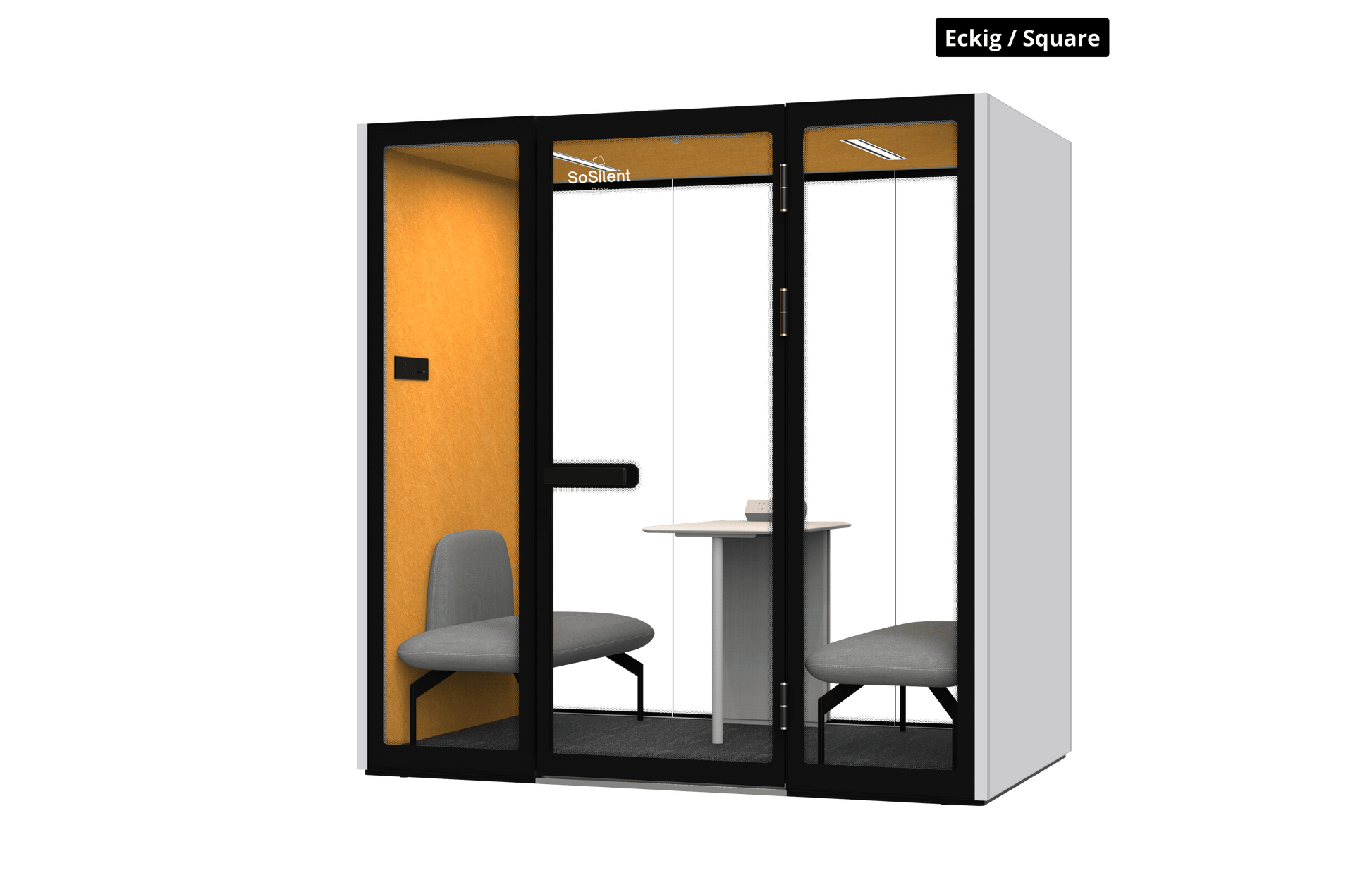

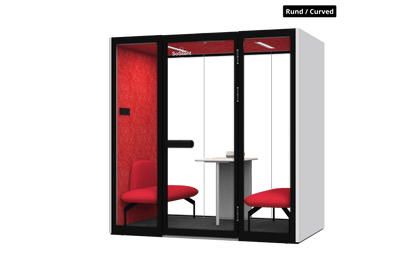

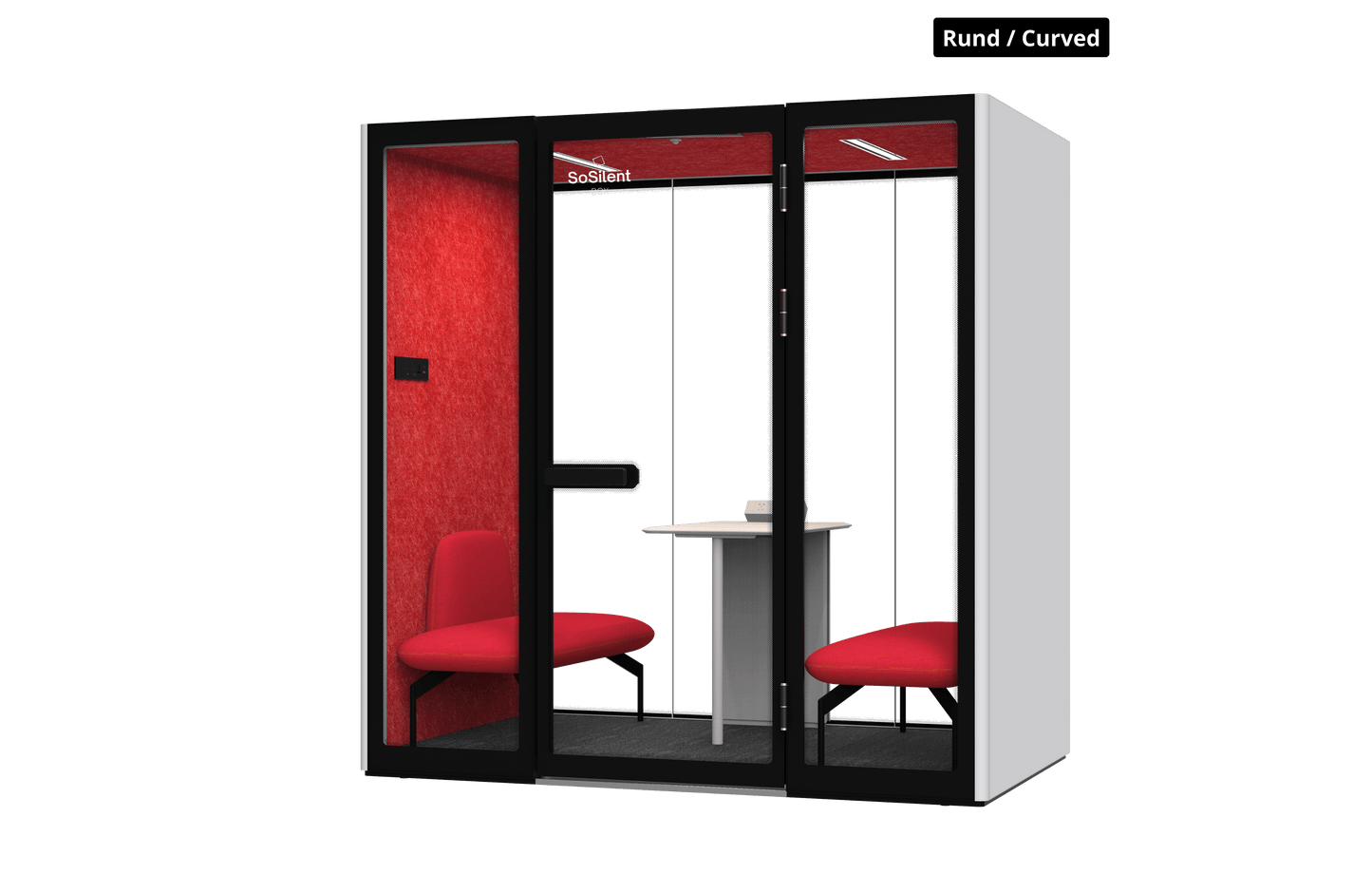

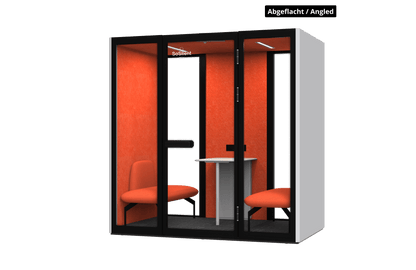

Frame shape

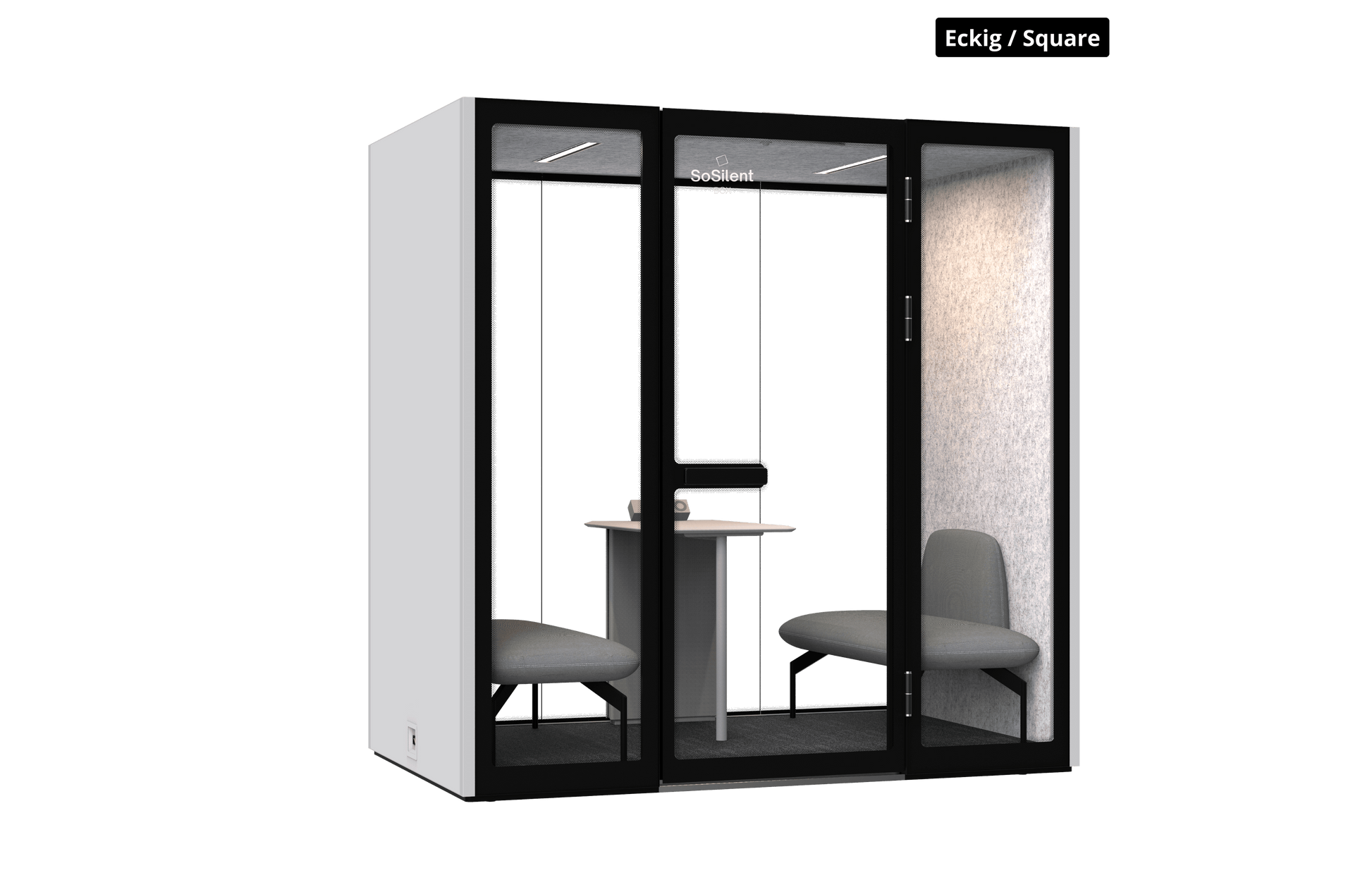

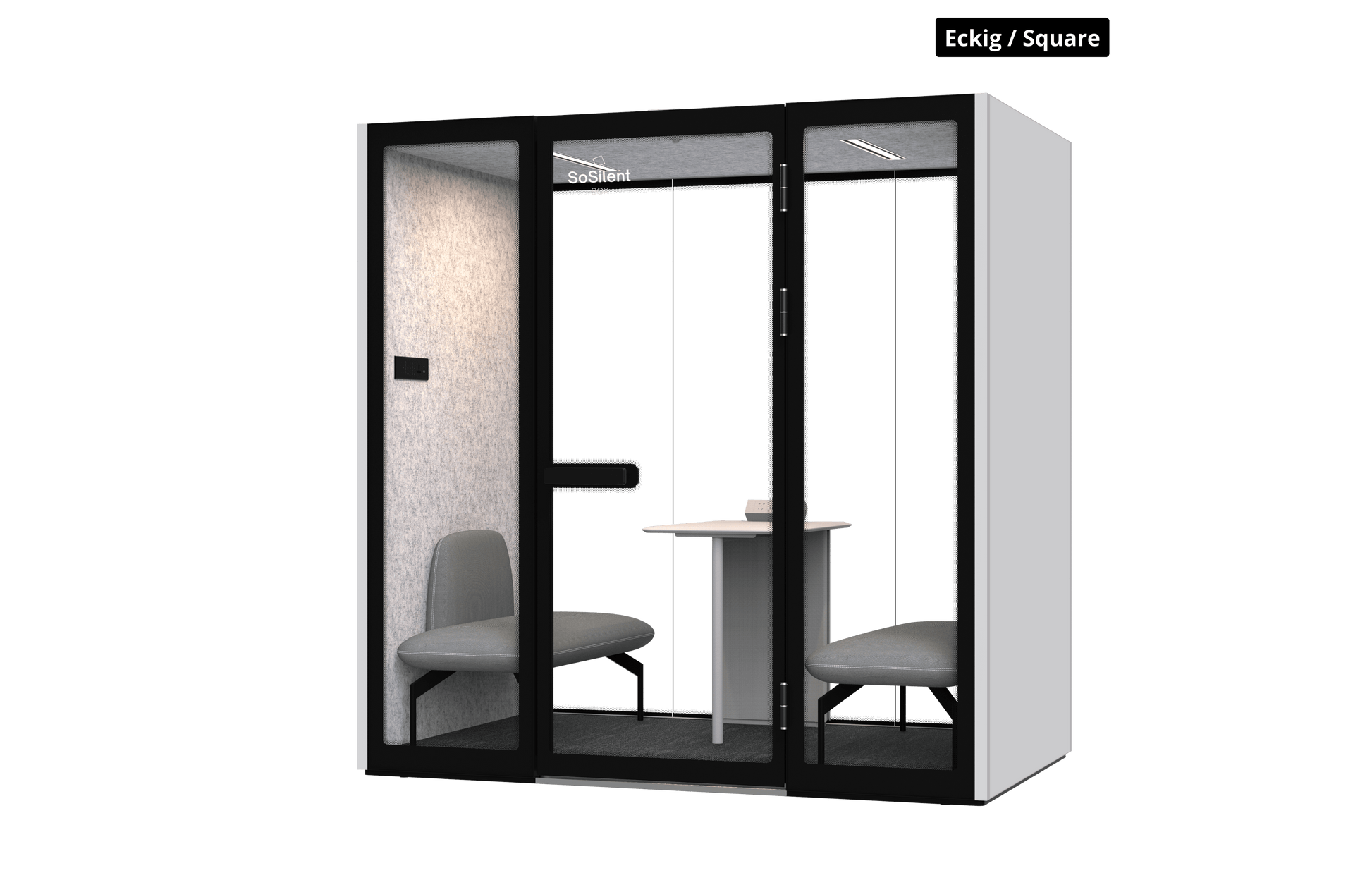

• Square (standard)

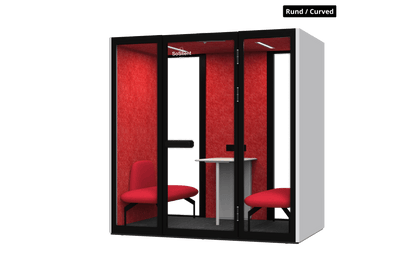

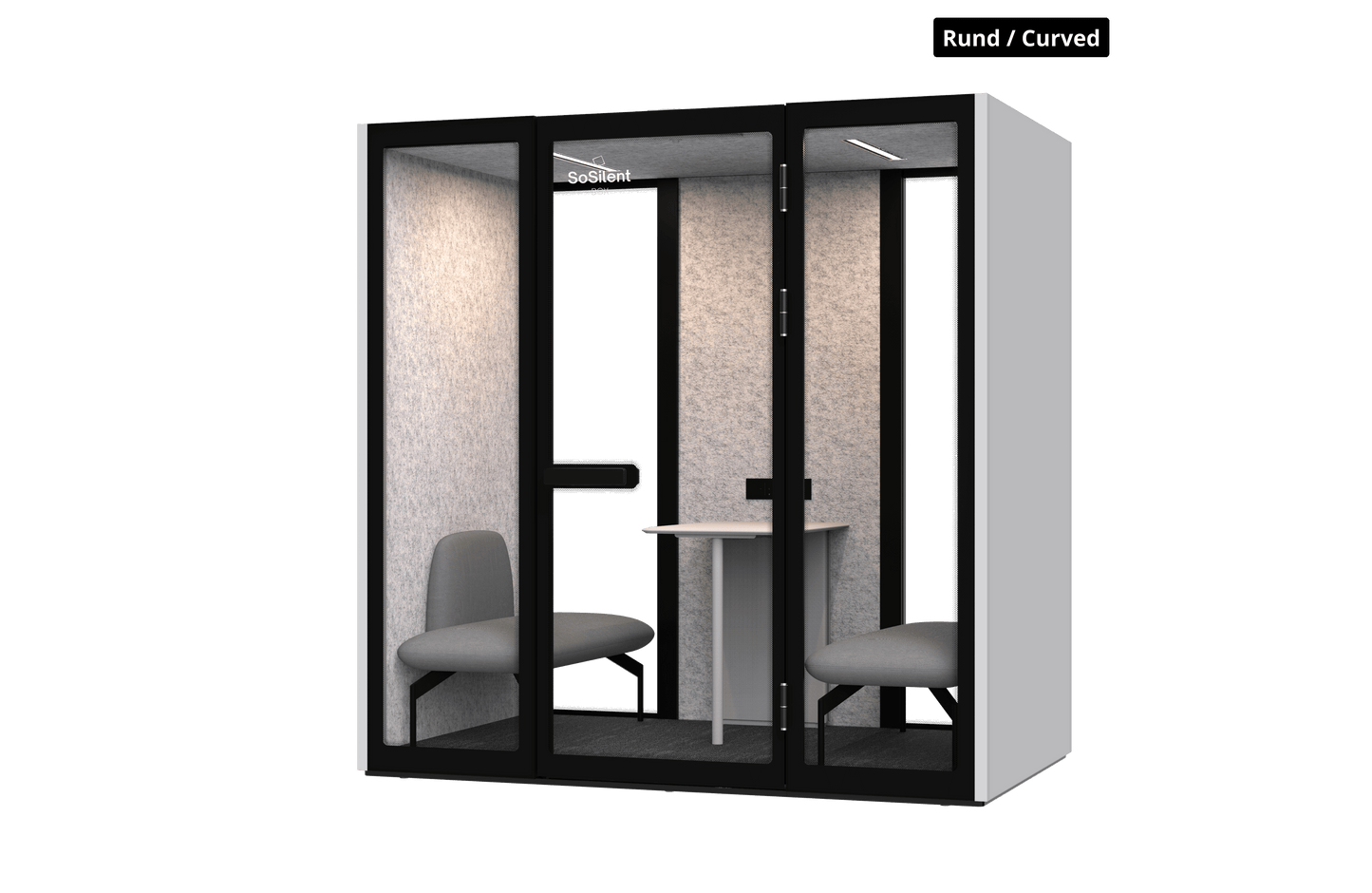

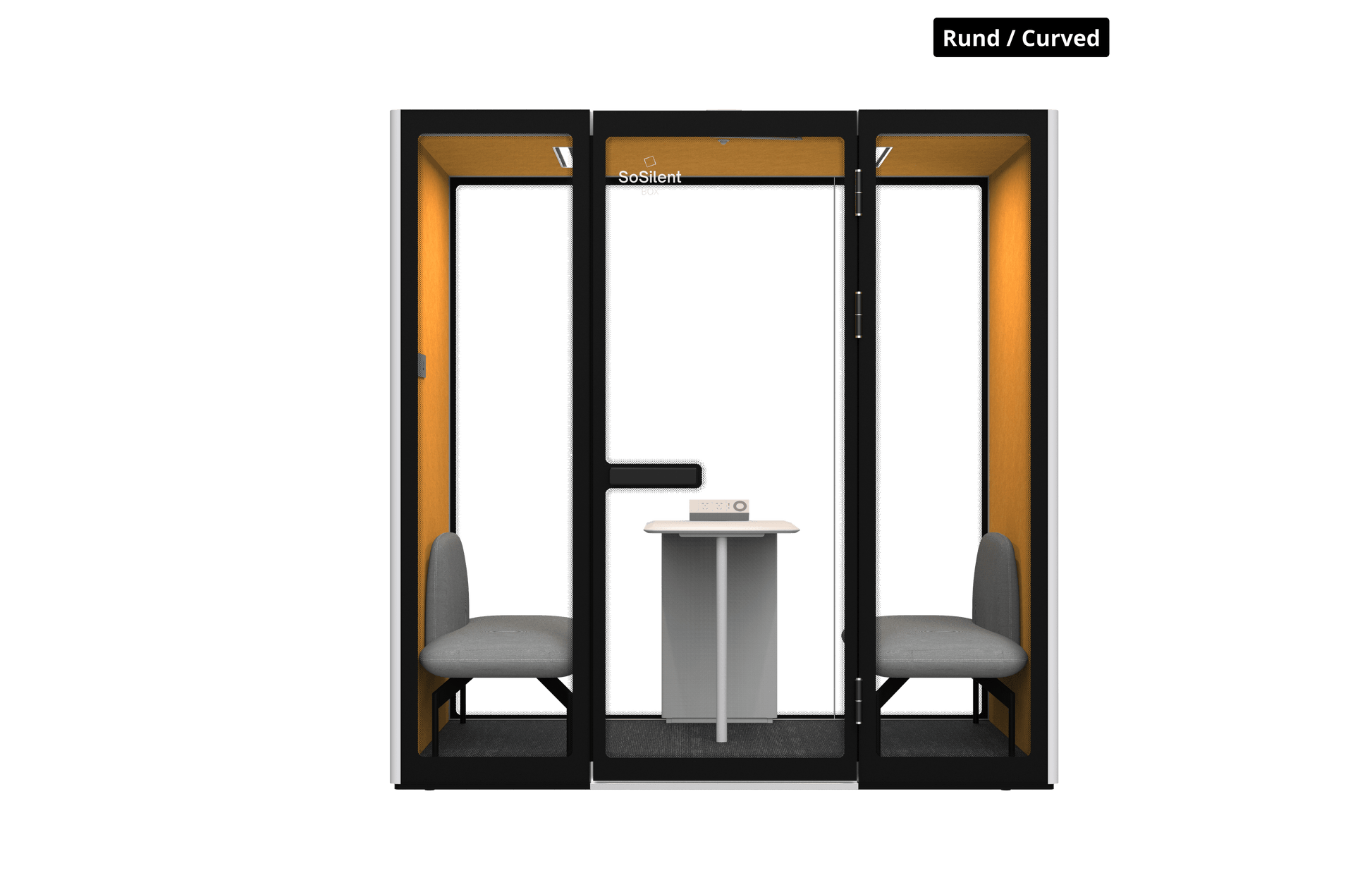

• Round

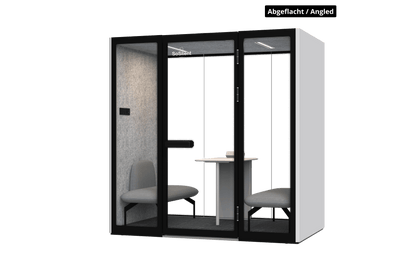

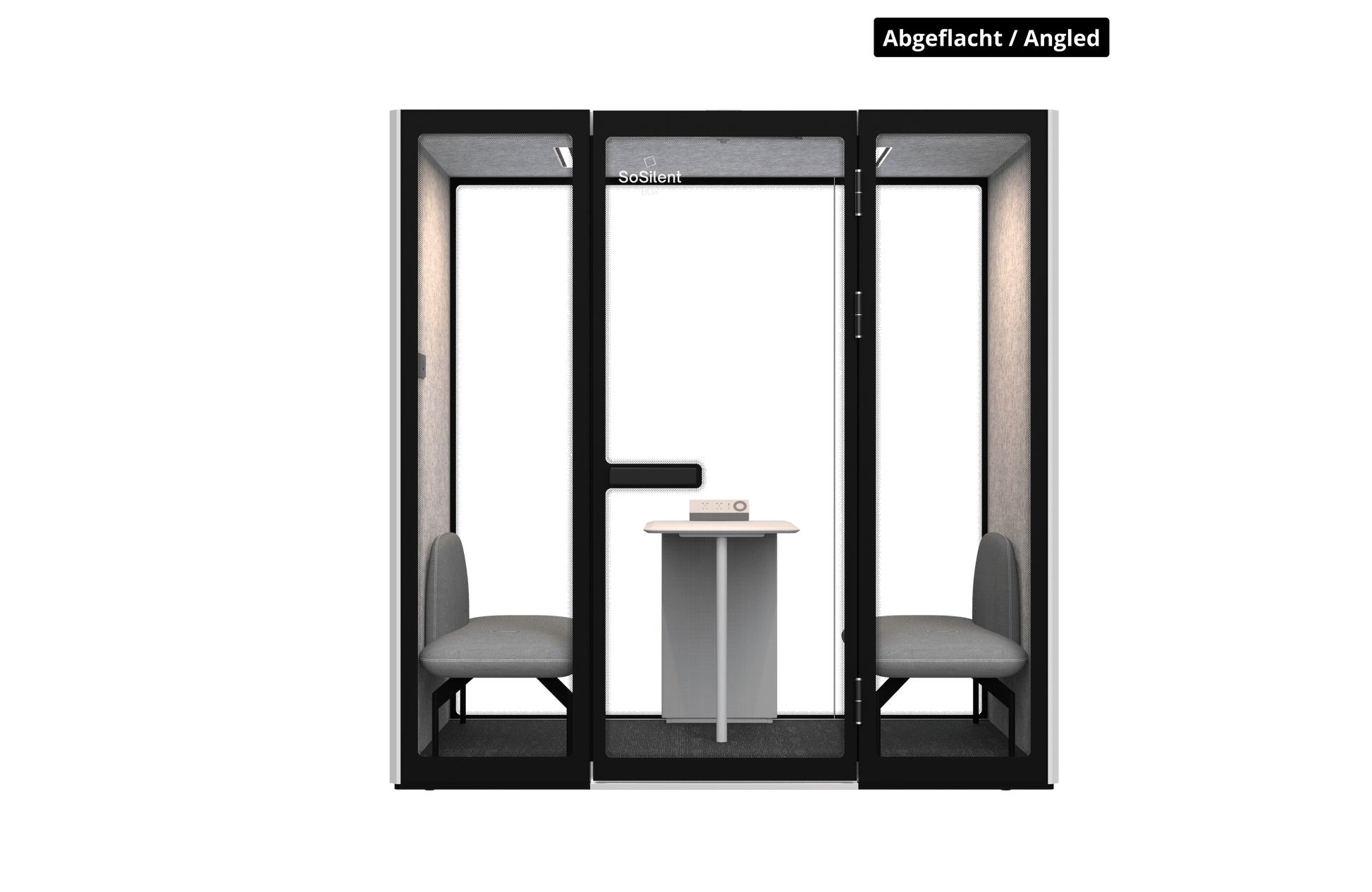

• Flattened

(Please specify the desired frame shape when requesting a quote/ordering. This option cannot currently be selected as a variant in the shop. The standard is “square”.)

• Meeting box for 2 people
• Retreat for teamwork in open space
• Video conferences & hybrid meetings
• Creative and workshop room
• Addition to larger conference rooms
